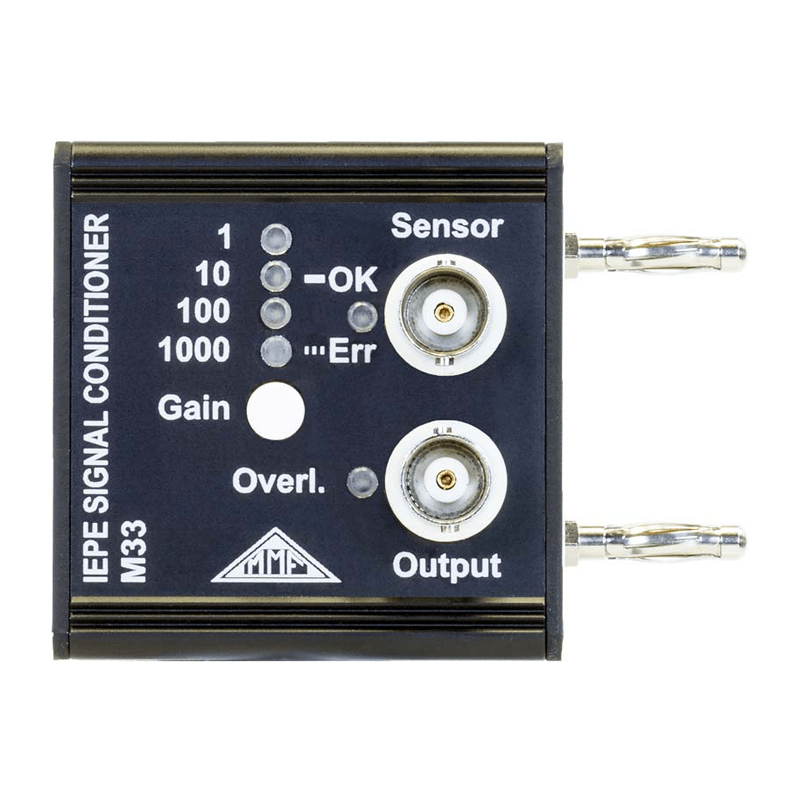

M33

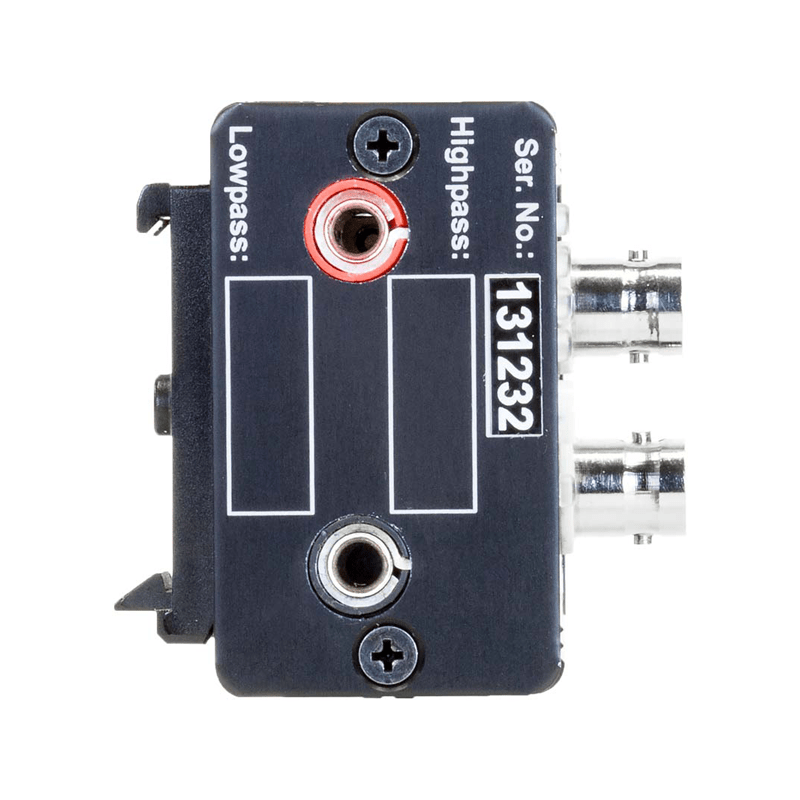

M33 - Image 2

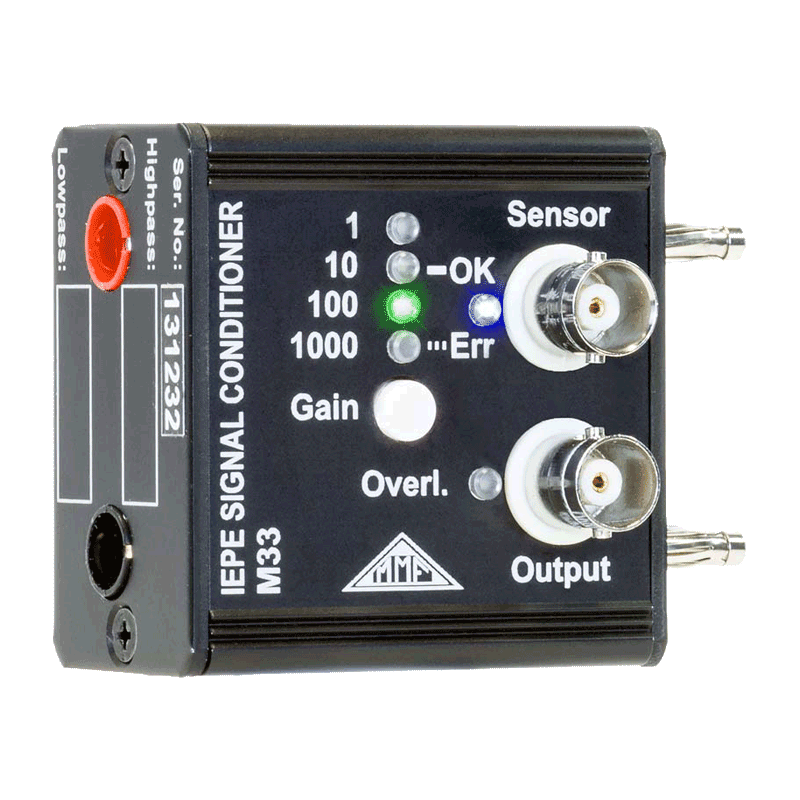

M33 - Image 3
M33 - Image 4
M33 - Image 5
M33 - Image 6

M33

IEPE amplifier module

  • For piezoelectric sensors with IEPE output

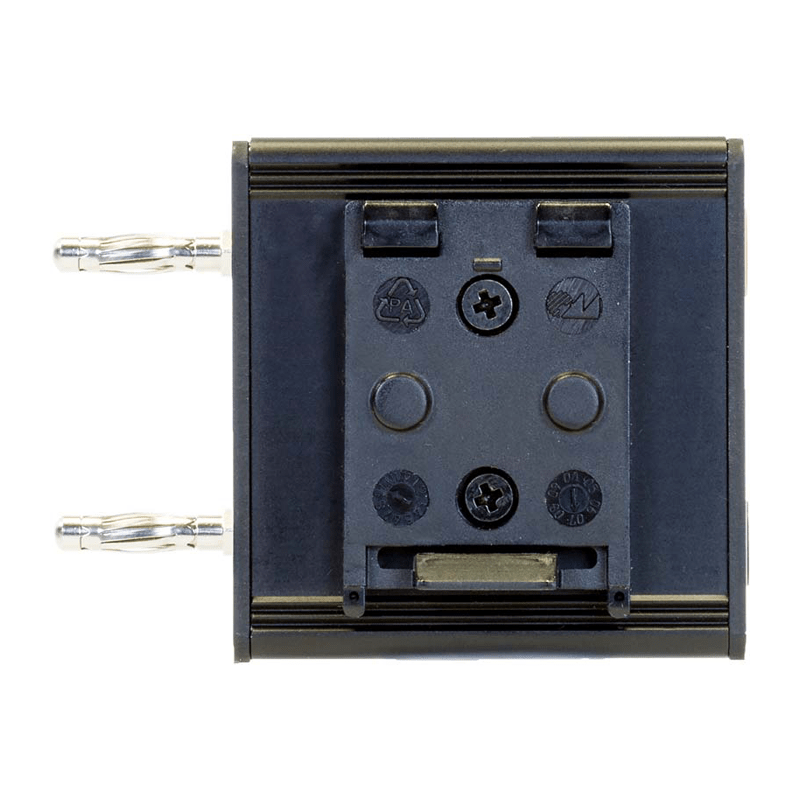

  • DIN rail mounting

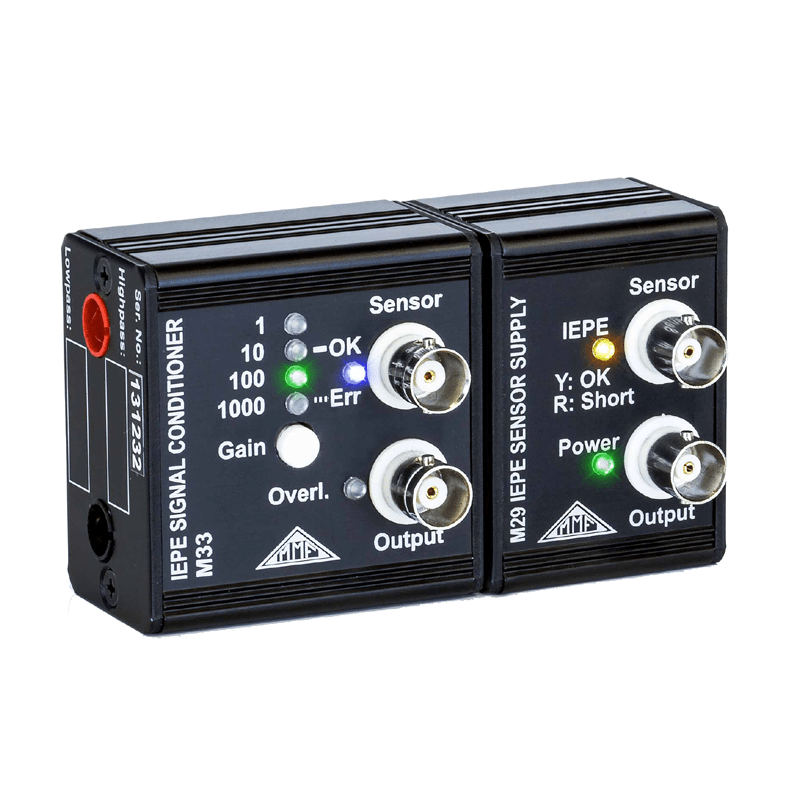

  • Stackable modules: Contact pins that can be screwed in at the side provide the power supply and mechanical connection to the neighboring module
  • Input and output via BNC sockets
  • Filtering and integration with plug-in modules
  • Gain adjustment via front keys
Channel number

1
Inputs

IEPE
Output(s)

AC
Gain voltage

1, 10, 100, 1000
Integrators

simple (FBV plug-in module), double (FBD plug-in module)
Low pass filter

Plug-in module FB2
High pass filter

Plug-in module FB3
Power supply

5 .. 28 V
  • IEPE Signal Conditioner M33
  • 2 years warranty

PLEASE NOTE:

A low pass module FB2 is required for operation (ordered separately). A high pass module FB3 can be ordered as an option. Alternatively, the FBV or FBD integrator modules can be used.

Downloads

Accessories for this product

  • FB2

    Plug-in low pass filters

  • FB3

    Plug-in high pass filters

  • FBD

    Double integrator plug-in modules

  • FBV

    Single integrator plug-in modules

  • M29/33DIN

    DIN rail adapter

  • IEPE100

    Remote Charge Converter

    • Related products

    M33 M29
    Channel number 1 1
    Inputs IEPE IEPE
    Output(s) AC AC
    Gain voltage 1, 10, 100, 1000 1
    Integrators simple (FBV plug-in module), double (FBD plug-in module) -
    Low pass filter Plug-in module FB2 -
    High pass filter Plug-in module FB3 -
    Power supply 5 .. 28 V 5 .. 28 V
