VM31-M

VM31-M

Machine Vibration Kit with VM31, Sensor and Accessories

Contents:

VM31 vibration meter

KS903B100 triaxial accelerometer

091-CMR-B711-3 sensor cable (3 m)

708 clamping magnet

Channel number

4
Measuring range acceleration

0,1 .. 6000 m/s²
Measuring range velocity

0,1 .. 50 000 mm/s
Measuring range displacement

0,001 .. 75 mm
Frequency range acceleration

0,1 .. 2000 Hz, 1 .. 1000 Hz
Frequency range velocity

1 .. 100 Hz, 10 .. 1000 Hz, 2 .. 1000 Hz
Frequency range displacement

5 .. 250 Hz
RMS

yes
Vector sum (X/Y/Z)

yes
Peak value

Peak
Frequency analysis (FFT)

125 lines
Measurement memory

10 000 measured values

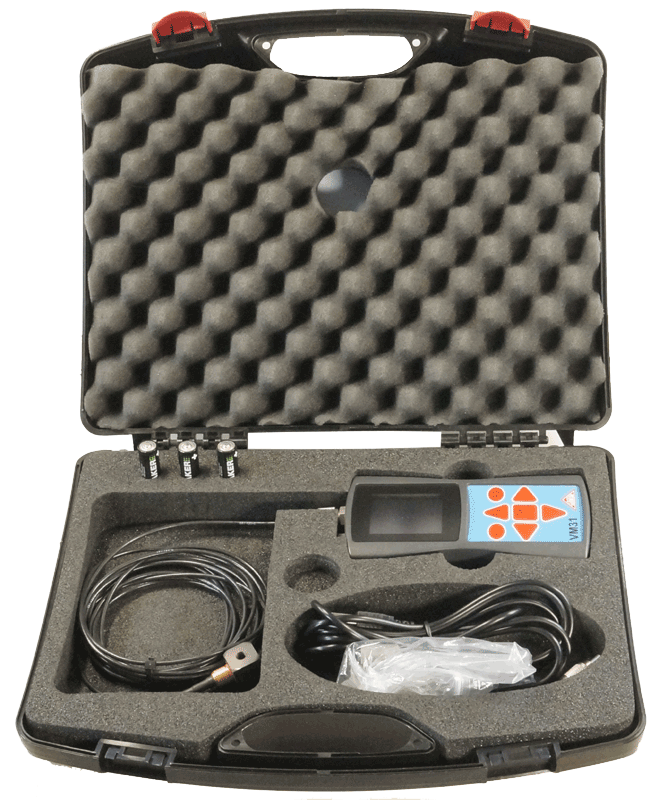

Here is an example of the scope of delivery:
