VM31-HA

VM31-HA

Hand Arm Kit with VM31, Sensor and Accessories

Complete measuring kit for hand-arm vibration measurement, including sensor and accessories

  • For hand-arm vibration measurement according to ISO5349 and ISO/TR 18570, whole-body vibration measurement according to ISO2631 and ship vibration according to ISO 20283-5
  • Measuring ranges for acceleration, velocity and displacement for measuring machine vibrations
  • Anzeige von gleitendem und Intervall-Effektivwert (RMS), Maximal-Effektivwert (MTVV), Schwingungsdosiswert (VDV), Schwingungsgesamtwert (aW), Spitzenwert und Maximal-Spitzenwert
  • Additional measuring channel, e.g. for SEAT measurement on driver’s seats
  • Three-channel FFT for finding main frequencies
  • TEDS support – automatic detection of sensor sensitivity
  • Measurement storage
  • Data logger for rms and peak values
  • USB interface for data transfer to the PC
  • Excel macro for calculating the daily exposure value A(8) and generating standard-compliant reports
  • Handy pocket size
Channel number

4
Measuring range acceleration

0.1 .. 6000 m/s²
Measuring range velocity

0.1 .. 50 000 mm/s
Measuring range displacement

0.001 .. 75 mm
Frequency range acceleration

0.1 .. 2000 Hz, 1 .. 1000 Hz
Frequency range velocity

1 .. 100 Hz, 2 .. 1000 Hz, 10 .. 1000 Hz
Frequency range displacement

5 .. 250 Hz
RMS

yes
Vector sum (X/Y/Z)

yes
Peak value

Peak
Frequency analysis (FFT)

125 lines
Measurement memory

10 000 measured values

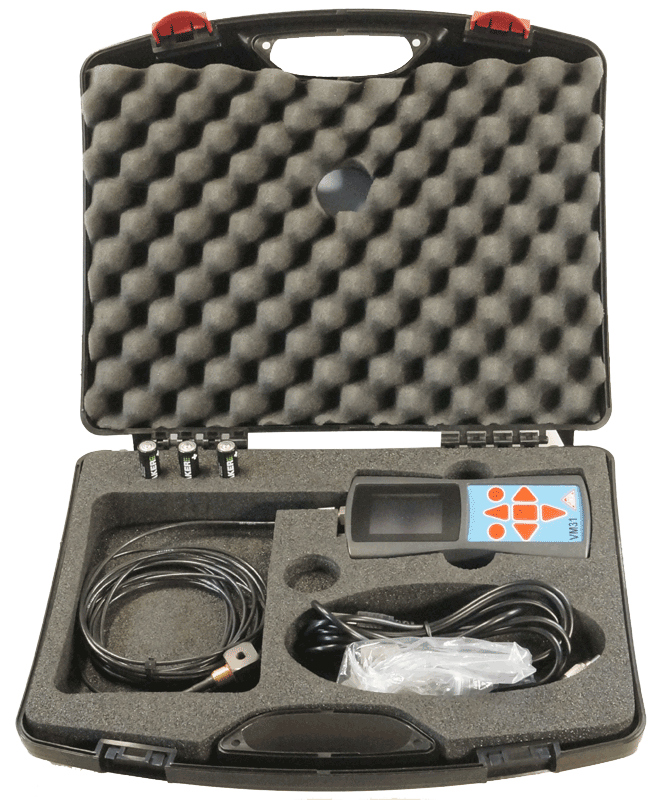

VM31-HA : Hand Arm Kit

  • Vibration Meter VM31
  • KS963B10: Triaxial Accelerometer
  • 091-CMR-B711-3: IEPE Triaxial cable; 3 m; 1/4“-28 / Binder 711
  • 141B: Adapter for strap attachment on curved surfaces
  • 143B: Hand-held adapter for curved surfaces
  • 027: Calibration adapter for KS963/KS973
  • VM-USB cable
  • Transport case
  • 2 years warranty

Note:

For data import and calculation of vibration exposure A(8) and VDV(8) an Excel macro file is provided
