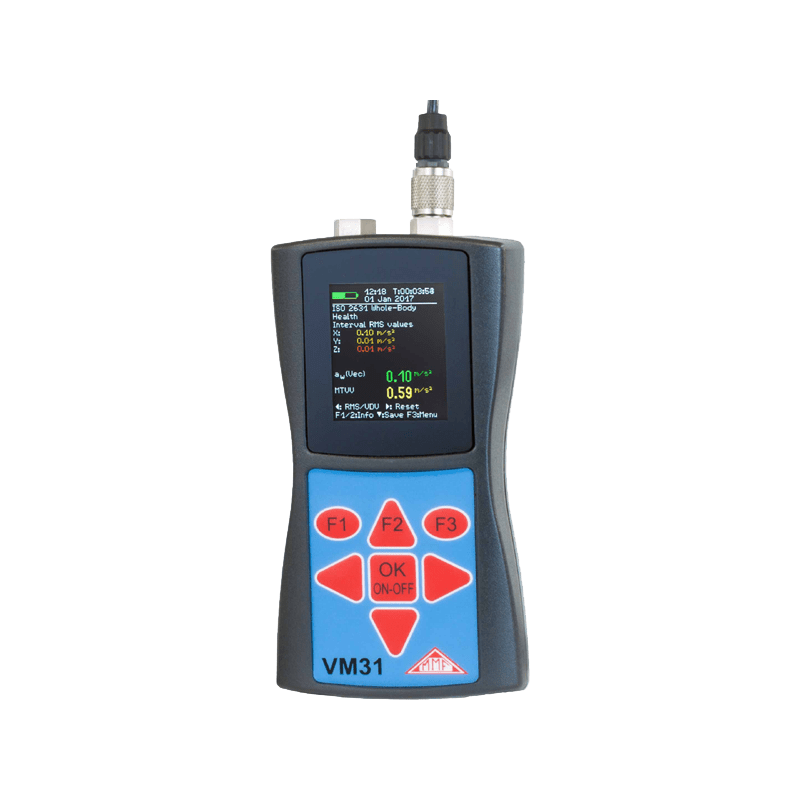

Vibration meter for human and machine vibration
For hand-arm vibration measurement according to ISO5349 and ISO/TR 18570, whole-body vibration measurement according to ISO2631 and ship vibration according to ISO 20283-5
Measuring ranges for acceleration, velocity and displacement for measuring machine vibrations

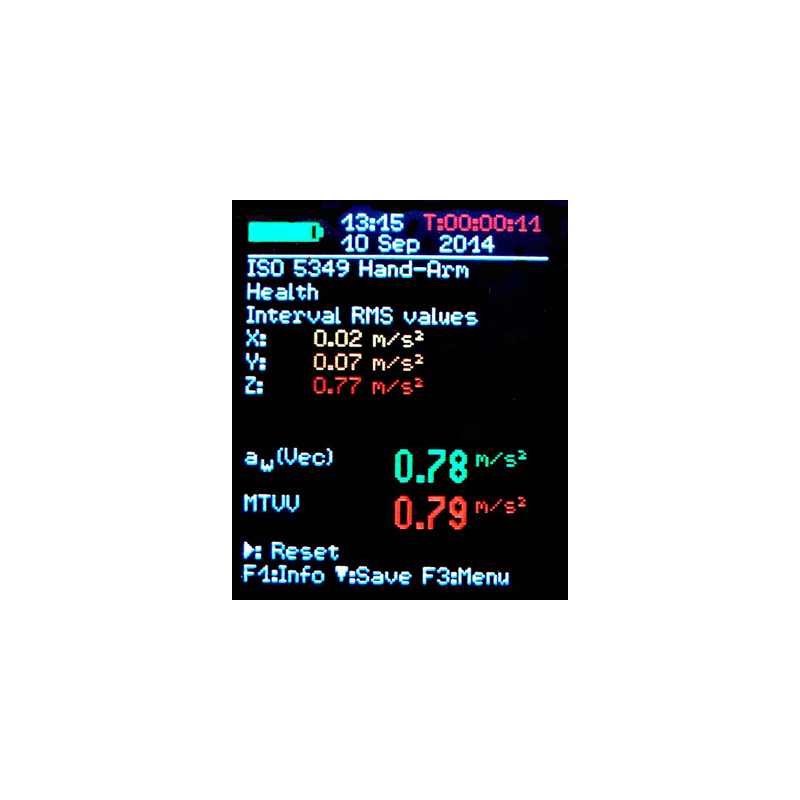

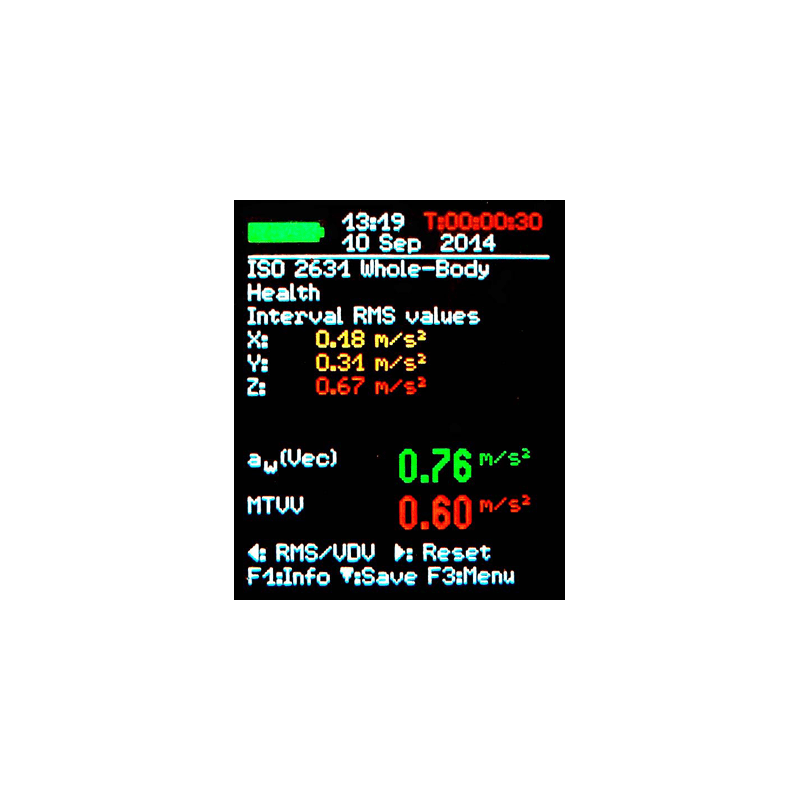

Display of running and interval RMS value (RMS), maximum RMS value (MTVV), vibration dose value (VDV), vibration total value, peak value, and maximum peak value.
Additional measuring channel, e.g. for SEAT measurement on driver’s seats
Three-channel FFT for finding main frequencies
TEDS support for automatic sensor detection

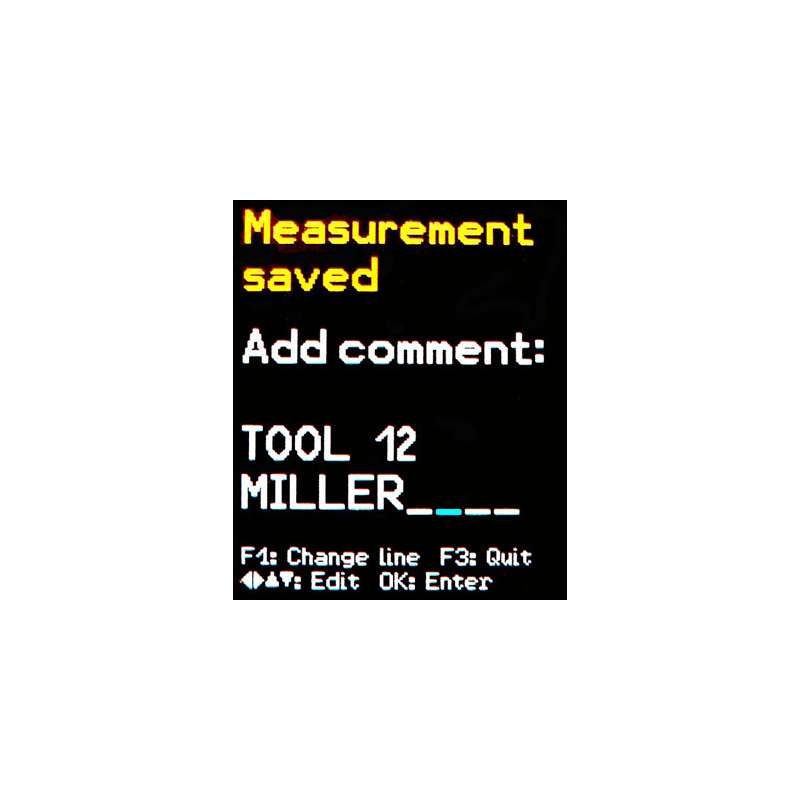

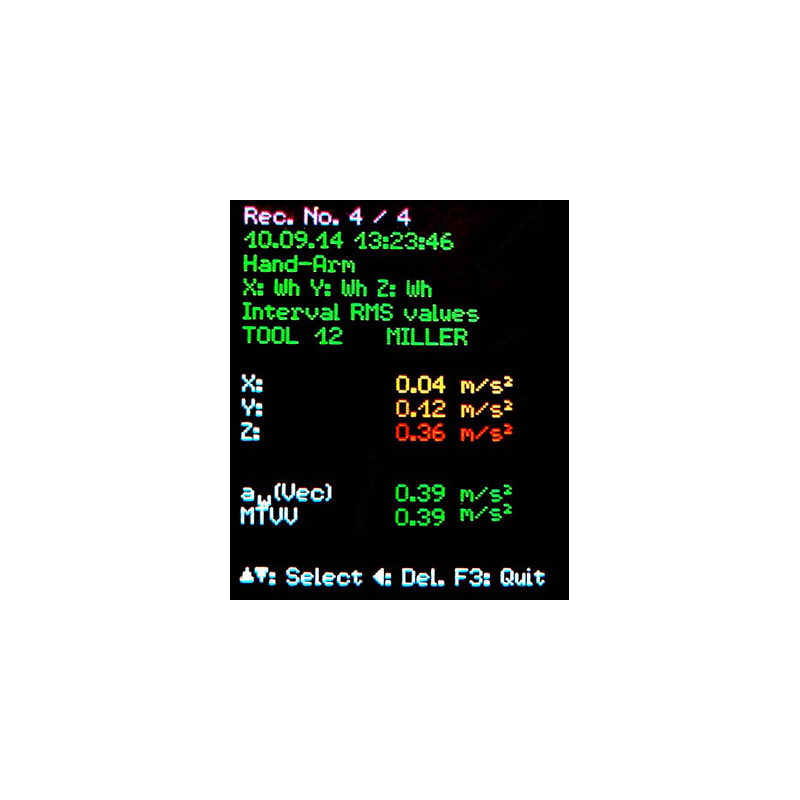

Measurement storage
Data logger for rms and peak values
USB interface for data transfer to the PC

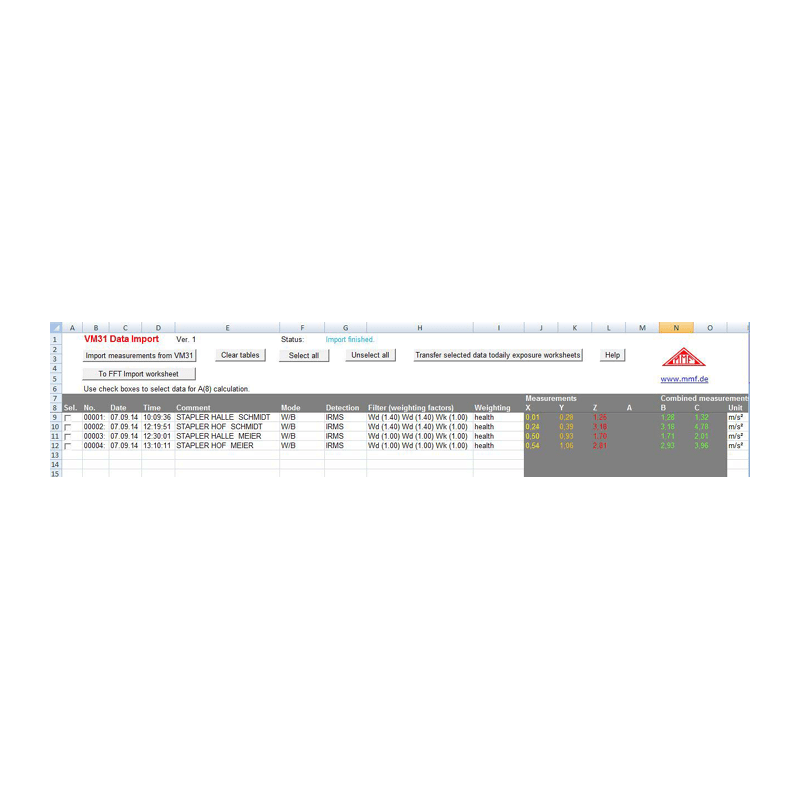

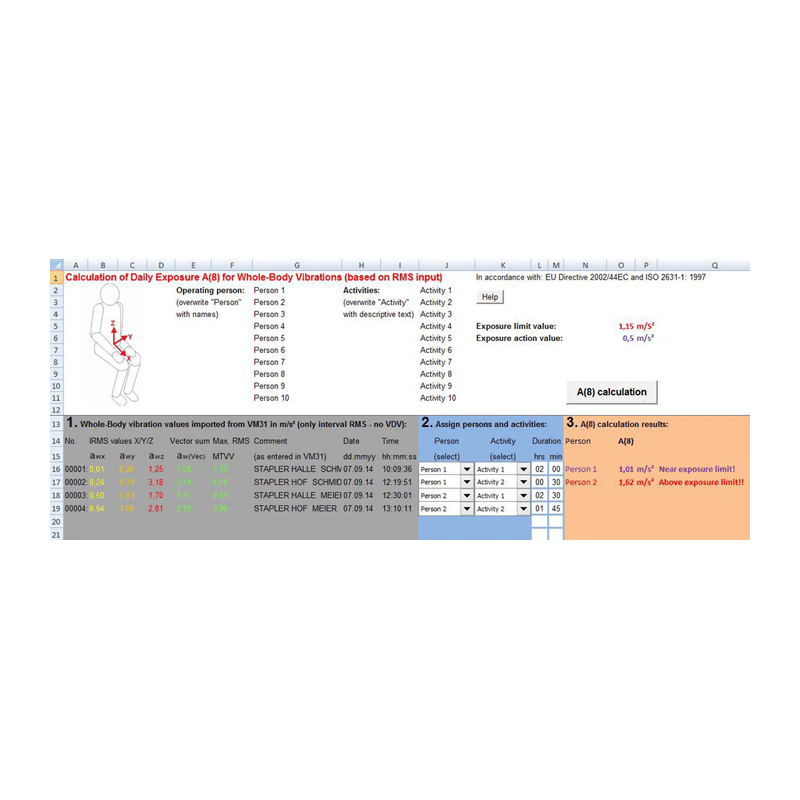

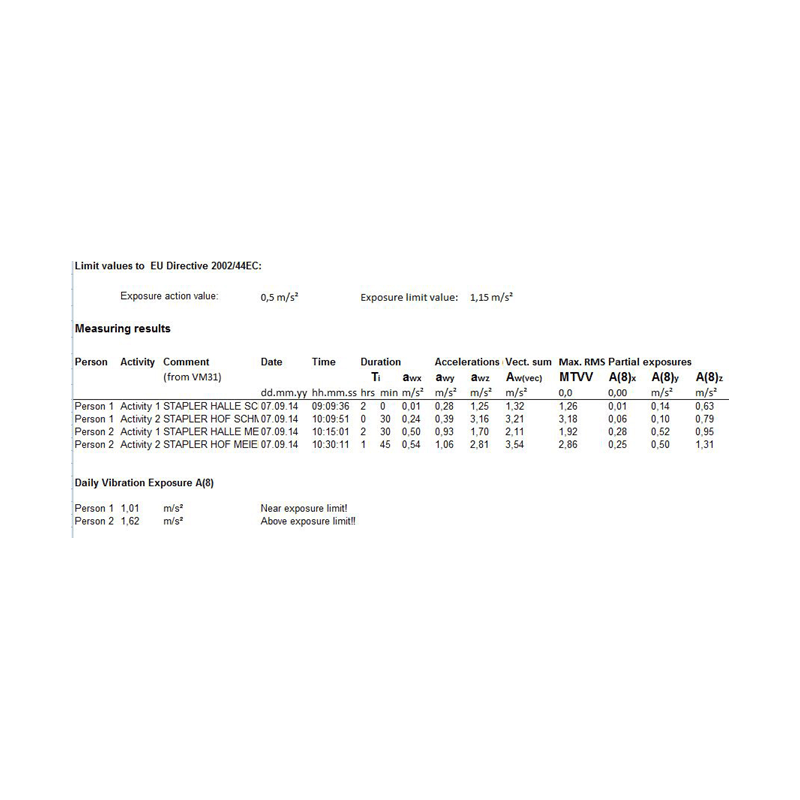

Excel macro for calculating the daily exposure value A(8) and generating standard-compliant reports
Handy pocket size
4
0,1 .. 6000 m/s²
0,1 .. 50 000 mm/s
0,001 .. 75 mm
0,1 .. 2000 Hz, 1 .. 1000 Hz
1 .. 100 Hz, 10 .. 1000 Hz, 2 .. 1000 Hz
5 .. 250 Hz
yes
Peak
125 lines
10 000 measured values
Here is an example of the scope of delivery:

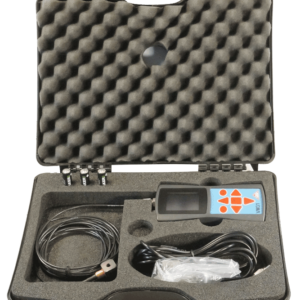

Hand-Arm Kit with VM31, Sensor and Accessories

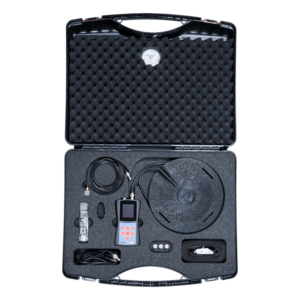

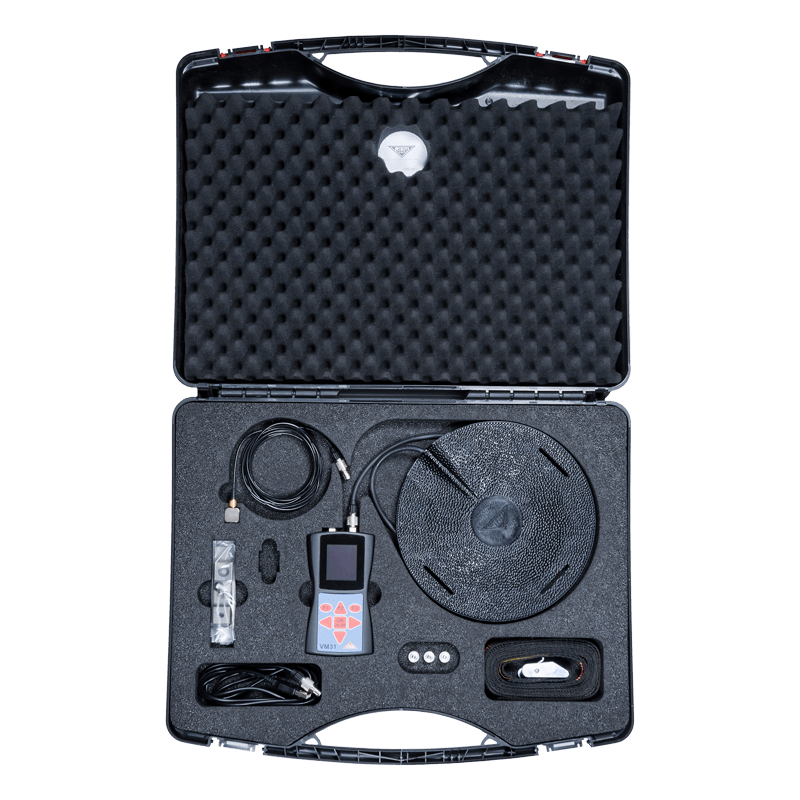

Hand-Arm and Whole-Body Kit with VM31, Sensors and Accessories
Machine Vibration Kit with VM31, Sensor and Accessories

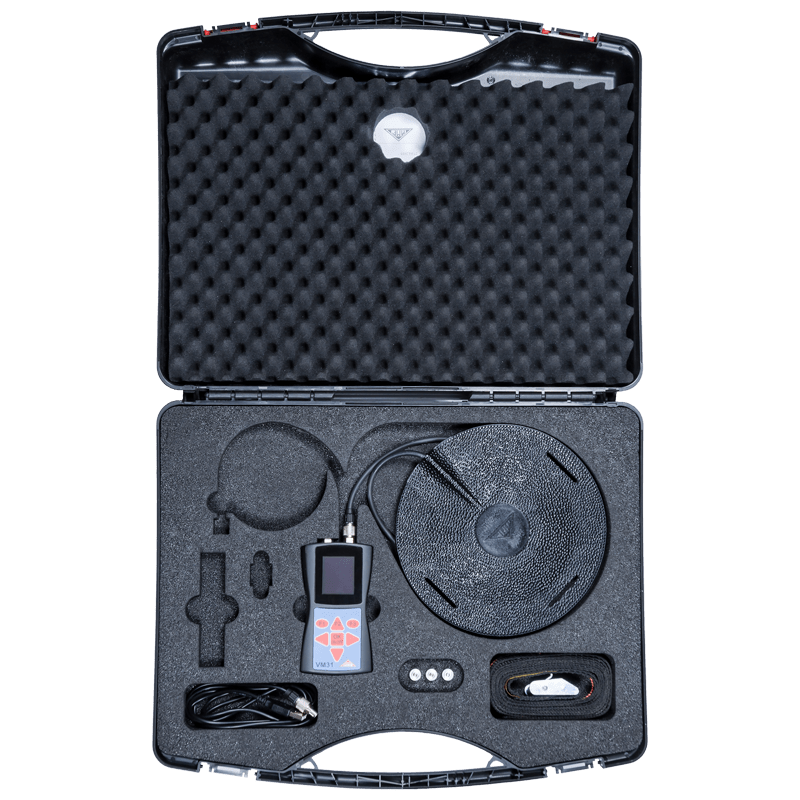

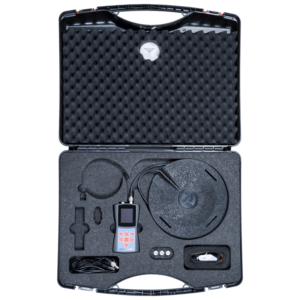

Whole-Body Kit with VM31 and Sensor
