VM100B

VM100B

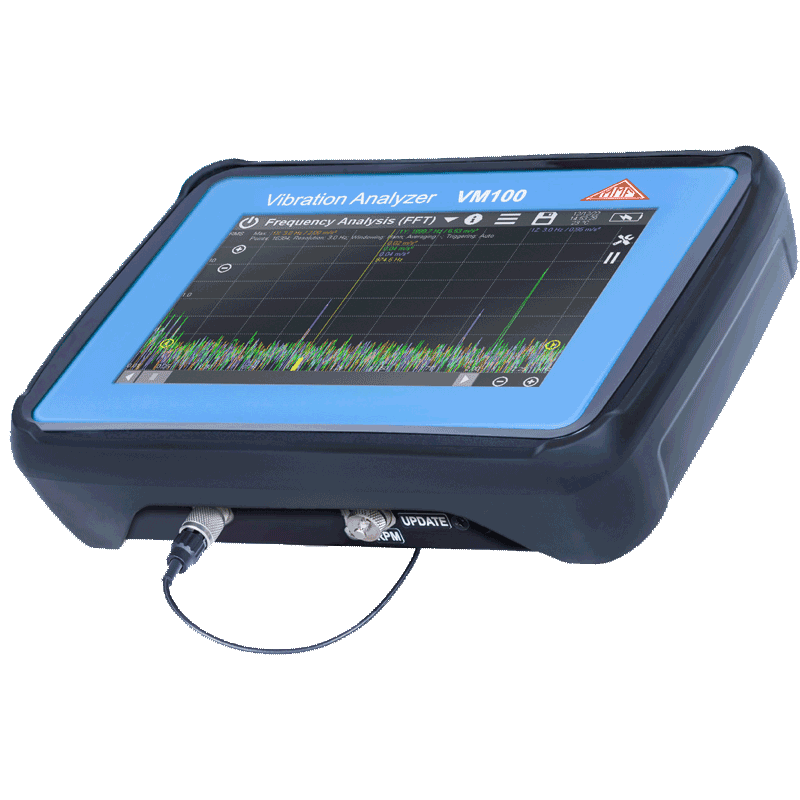

Vibration analyzer, 3-channels

Universal vibration analyzer with simple operation via touch screen

Frequency analysis and overall value measurements with long-term plot (scope of delivery)

Optionally licensed functions:

Route-based measurements on machines

Rolling bearing diagnosis

Balancing in one or two planes

Hand-arm and whole-body vibration measurement; ride comfort evaluation

Run-up and coast-down analysis; resonance finding

Vibration measurements on very sensitive equipment (VC/Nano)

Channel number

3
Measuring range acceleration

0,0001 .. 100 000 m/s²
Measuring range velocity

0,0001 .. 100 000 mm/s
Measuring range displacement

0,000 01 .. 100 mm
Frequency range acceleration

0,4 .. 24 000 Hz, div. Filter
Frequency range velocity

2 .. 2000 Hz, div. Filter
Frequency range displacement

2 .. 300 Hz, div. Filter
RMS

yes
Peak value

Hold peak, Peak, Peak-to-Peak
Crest factor

yes
Vector sum (X/Y/Z)

yes
Frequency analysis (FFT)

1024 .. 65 536 points
Main frequency

yes
Measurement memory

Bitmap, CSV, SD card, WAVE

Here is an example of the scope of delivery:

Downloads

Accessories for this product

  • 034-B711-BNCf

    sensor adapter cable with 3 x BNC, fem.

  • VM100-BAL

    VM100 license for rotor balancing

  • VM100-ENV

    VM100 license for envelope analysis

  • VM100-HA

    VM100 license for hand-arm measurement

  • VM100-LS

    Photoelectric reflex switch with magnetic stand for VM100

  • VM100-MAC

    VM100 license for machine monitoring and measurement route management

  • VM100-RPM

    VM100 license for amplitude/rotation speed measurement (Run-up and coast-down analysis)

  • VM100-VC

    VM100 license for third-octave band analysis according to VC and Nano criteria
