VM100A

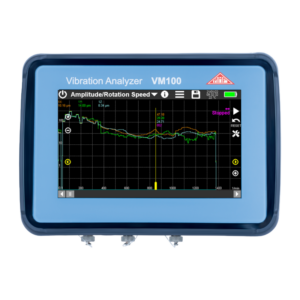

Vibration Analyzer with 9 channels

The VM100 series vibration analyzers was designed for the typical tasks of vibration measurement in laboratories and production facilities. Despite its large range of functions, the main focus was on ease-of-use.

Two models are available: VM100A with 9 sensor channels and VM100B with 3 sensor channels.

Thanks to the modular device software, you get exactly the features you need. Instruments for frequency analysis and overall value measurements with long-term plot are already included. Additional features can be activated optionally at any time.

Key features:

  • Fully touch operated, simple and intuitive design
  • IEPE sensor channels with TEDS support
  • Tacho input
  • Simultaneous 24-bit data acquisition for high accuracy
  • NFC detection of measurement points for route measurement and saving
  • Raw signal recording for further analysis
  • Export to standard data formats (CSV, BMP, WAV)
  • IP65 protection grade

Optionally licensed functions:

  • VM100-MAC: Route-based measurements on machines
  • VM100-ENV: Rolling bearing diagnosis
  • VM100-BAL: Balancing in one or two planes
  • VM100-HUM: Hand-arm and whole-body vibration measurement; ride comfort assessment
  • VM100-RPM: Run-up and coast-down analysis; resonance finding
  • VM100-VC: Vibration measurements on very sensitive equipment (VC/Nano)
Channel number

9
Measuring range acceleration

0.0001 .. 100 000 m/s²
Measuring range velocity

0.0001 .. 100 000 mm/s
Measuring range displacement

0.000 01 .. 100 mm
Frequency range acceleration

0.4 .. 24 000 Hz, div. Filter
Frequency range velocity

2 .. 2000 Hz, div. Filter
Frequency range displacement

2 .. 300 Hz, div. Filter
RMS

yes
Peak value

Hold peak, Peak, Peak-to-Peak
Crest factor

yes
Vector sum (X/Y/Z)

yes
Frequency analysis (FFT)

1024 .. 65 536 points
Main frequency

yes
Measurement memory

Bitmap, CSV, SD card, WAVE

VM100A : Basic unit

  • VM100A Vibration Analyzer with factory calibration certificate
  • Software license for frequency analysis
  • Software license for overall value measurements with long-term plot
  • USB charger, USB cable
  • Transport case
  • 2 years warranty

VM100A -HA2: Hand-Arm Kit for two hands

  • VM100A Vibration Analyzer with factory calibration certificate
  • Software license for frequency analysis
  • Software license for overall value measurements with long-term plot
  • Software license VM-HUM
  • 2x KS963B10: Triaxial Accelerometer
  • 2x 091-CMR-B711-3: IEPE Triaxial cable; 3 m; 1/4“-28 / Binder 711
  • 2x 141B: Adapter for strap attachment on curved surfaces
  • 2x 143B: Hand-held adapter for curved surfaces
  • 027: Calibration adapter for KS963/KS973
  • USB charger, USB cable
  • Transport case
  • 2 years warranty

VM100A -HA2WB: Hand-arm and whole-body Kit

  • VM100A Vibration Analyzer with factory calibration certificate
  • Software license for frequency analysis
  • Software license for overall value measurements with long-term plot
  • Software license VM-HUM
  • 2x KS963B10: Triaxial Accelerometer
  • KS963B100-S: Triaxial Seat Cushion Accelerometer
  • 2x 091-CMR-B711-3: IEPE Triaxial cable; 3 m; 1/4“-28 / Binder 711
  • 2x 141B: Adapter for strap attachment on curved surfaces
  • 2x 143B: Hand-held adapter for curved surfaces
  • 027: Calibration adapter for KS963/KS973
  • USB charger, USB cable
  • Transport case
  • 2 years warranty

PLEASE NOTE:

Factory calibration certificates are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads

Accessories for this product

  • 034-B711-BNCf

    VM100 sensor adapter cable with 3 x BNC, female.

  • VM100-LS

    Reflex light barrier with magnetic stand for VM100

  • VM100-BAL

    license for rotor balancing

  • VM100-ENV

    VM100 license for envelope analysis

  • VM100-MAC

    VM100 license for machine monitoring and measurement route management

  • VM100-RPM

    VM100 license for amplitude/rotation speed measurement (Run-up and coast-down analysis)

  • VM100-VC

    VM100 license for third-octave band analysis according to VC and Nano criteria

  • VM100-HUM

    VM100 license for measuring human vibration

    • Related products

    VM100A VM100B
    Channel number 9 3
    Measuring range acceleration 0.0001 .. 100 000 m/s² 0.0001 .. 100 000 m/s²
    Measuring range velocity 0.0001 .. 100 000 mm/s 0.0001 .. 100 000 mm/s
    Measuring range displacement 0.000 01 .. 100 mm 0.000 01 .. 100 mm
    Frequency range acceleration 0.4 .. 24 000 Hz, div. Filter 0.4 .. 24 000 Hz, div. Filter
    Frequency range velocity 2 .. 2000 Hz, div. Filter 2 .. 2000 Hz, div. Filter
    Frequency range displacement 2 .. 300 Hz, div. Filter 2 .. 300 Hz, div. Filter
    RMS yes yes
    Peak value Hold peak, Peak, Peak-to-Peak Hold peak, Peak, Peak-to-Peak
    Crest factor yes yes
    Vector sum (X/Y/Z) yes yes
    Frequency analysis (FFT) 1024 .. 65 536 points 1024 .. 65 536 points
    Main frequency yes yes
    Measurement memory Bitmap, CSV, SD card, WAVE Bitmap, CSV, SD card, WAVE
