VM-STRUC

VibroMetra license for the measurement of building vibration according to DIN 4150-3

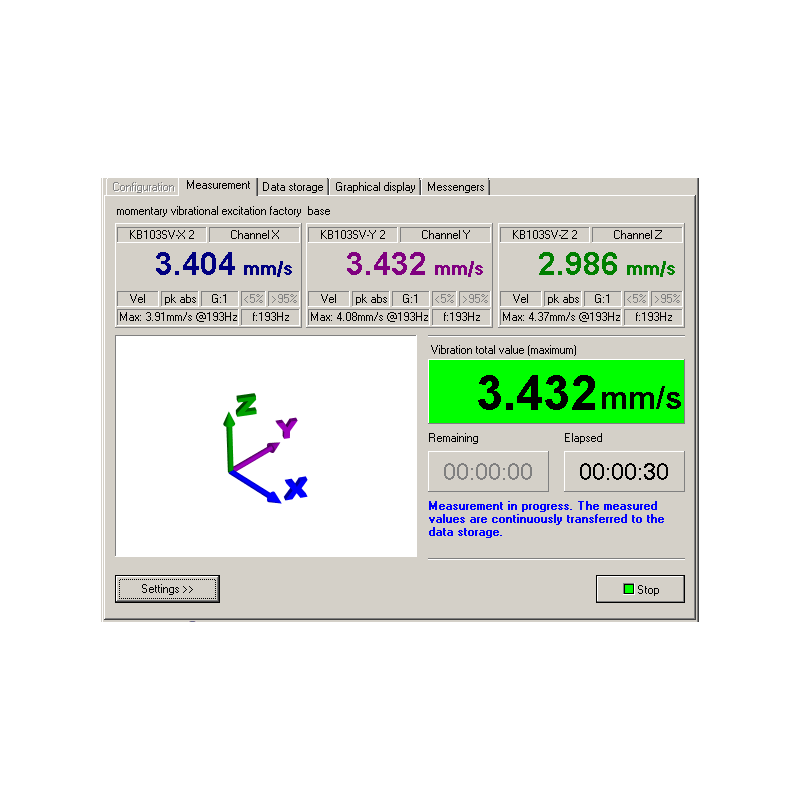

  • Measurement and evaluation of vibrations in buildings to DIN 4150-3 for the determination of their effects on structures
  • User guidance

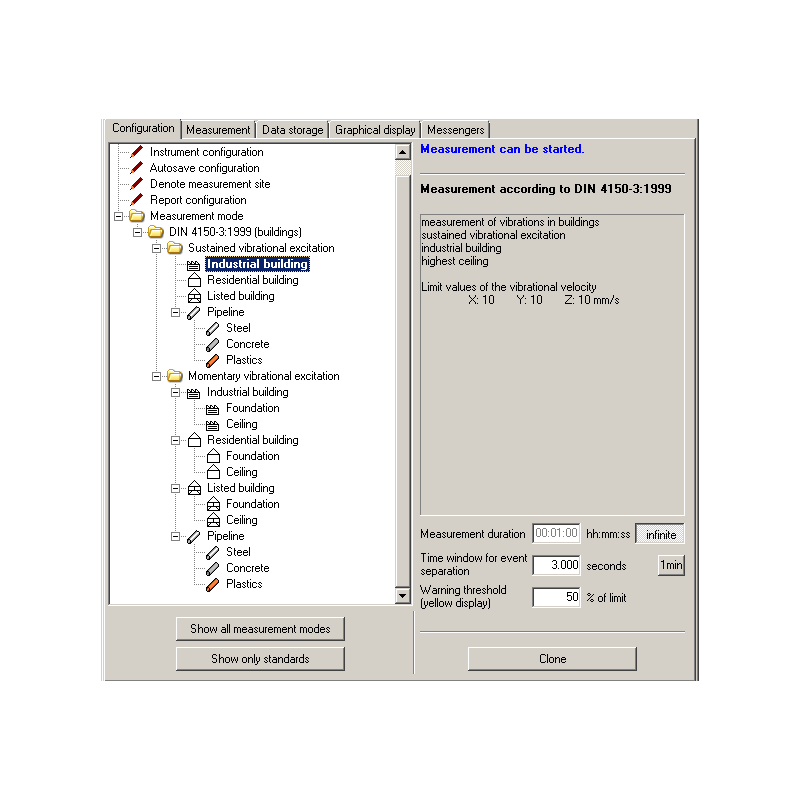

  • Comparison with limits to DIN 4150-3

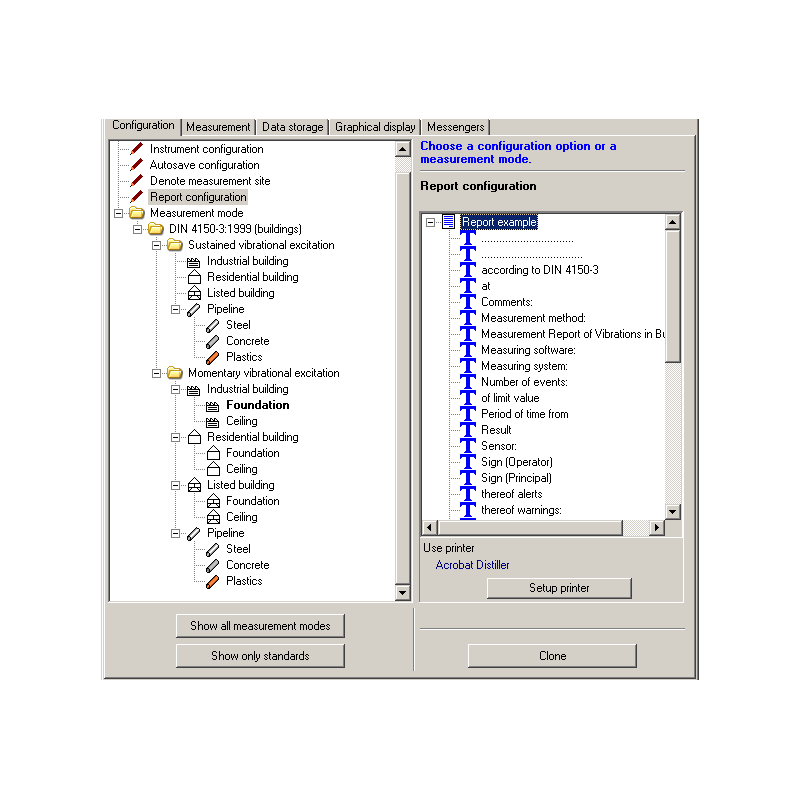

  • Simple report generation
  • Detection of main frequency
  • VM-STRUC+: FFT analysis

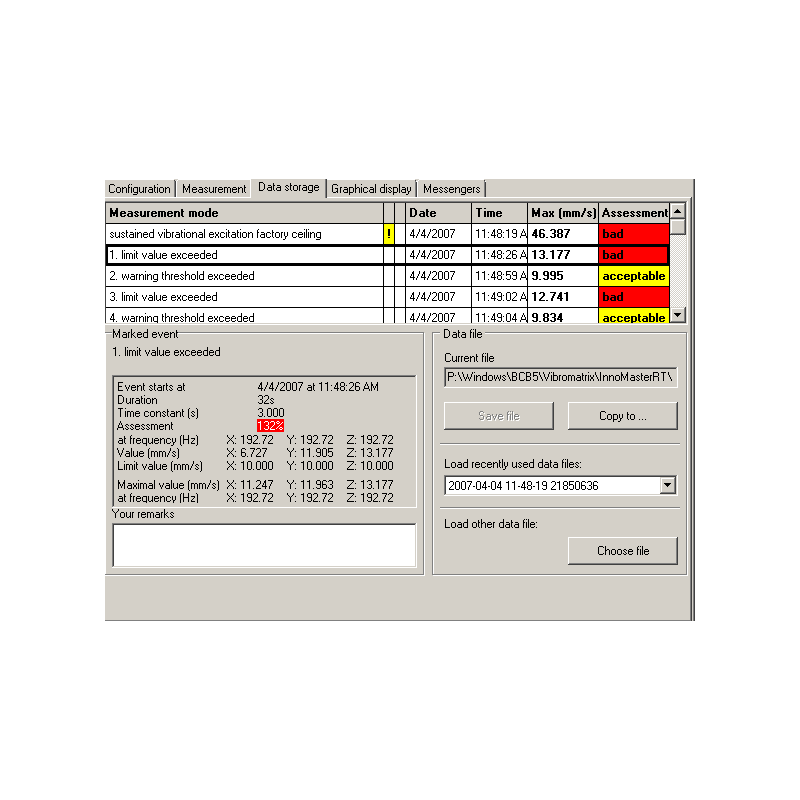

  • Saves of the time stamp of vibration events and the real-time measurands
  • External signaling devices can be controlled
  • Offline measurement possible

Recommended Sensor: Triaxial high sensitivity accelerometer KS823B with tripod floor plate 729

  • License key for activating the selected VibroMetra instrument
  • 1 license key = 1 measuring channel

PLEASE NOTE:

The license is permanently assigned to the serial number of the M312B used and is stored directly on the device.
The serial number and desired measurement channel (Ch1/Ch2) must be specified at the purchase.

Downloads

Accessories for this product

  • M312B

    VibroMetra USB Sensor Interface

  • KS823B

    Highly Sensitive Triaxial Accelerometer

  • 729

    Tripod floor plate for accelerometers
