VM-PERS

VibroMetra license for building vibration measurement according to DIN 4150-2

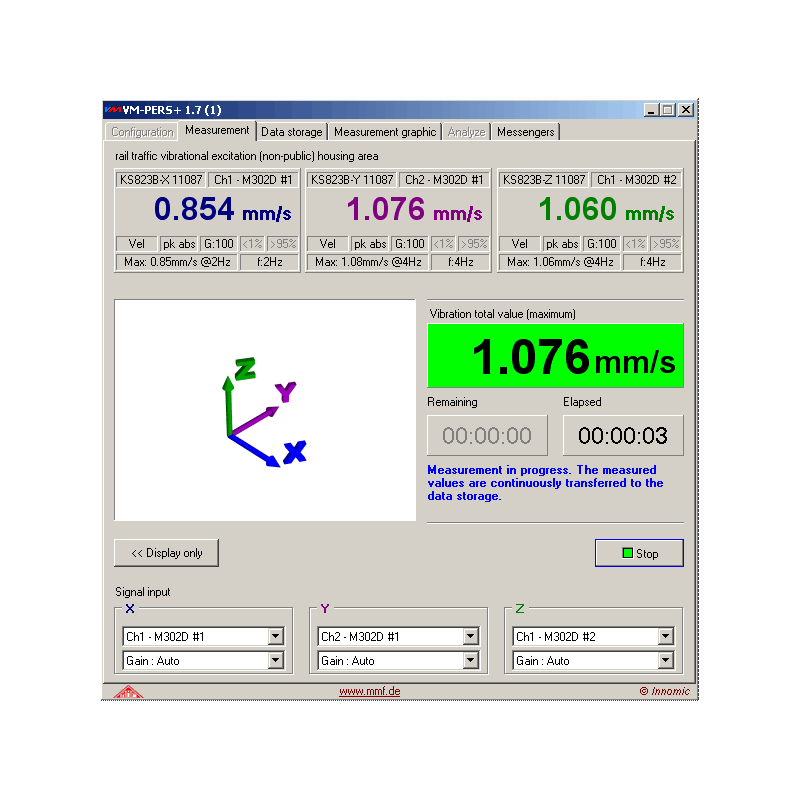

  • Measurement and evaluation of vibrations in buildings according to DIN 4150-2 for the determination of their effects on persons
  • User guidance

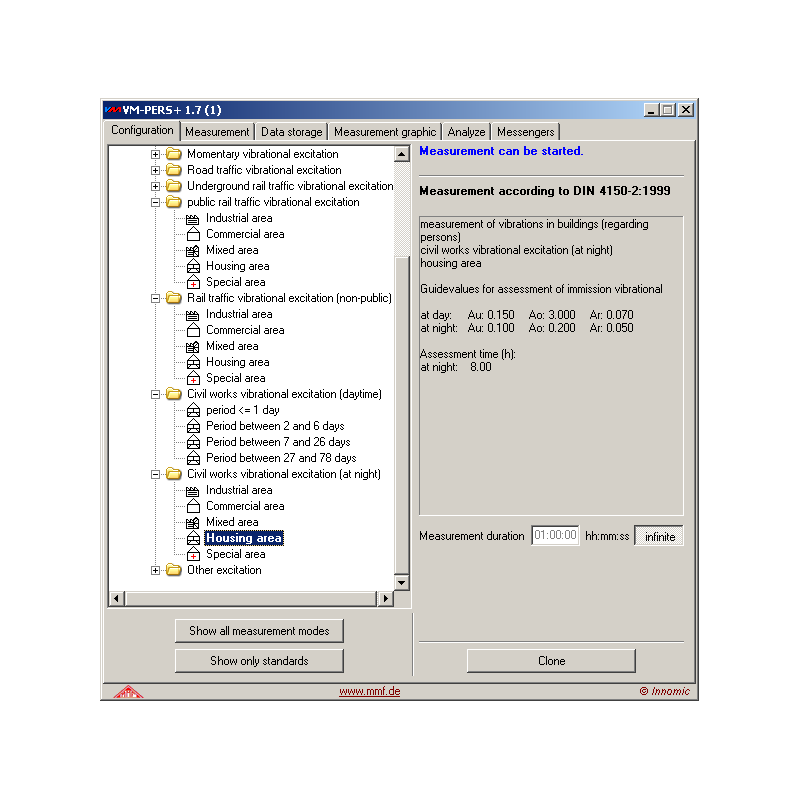

  • Comparison of measurements with the limits from DIN 4150-2

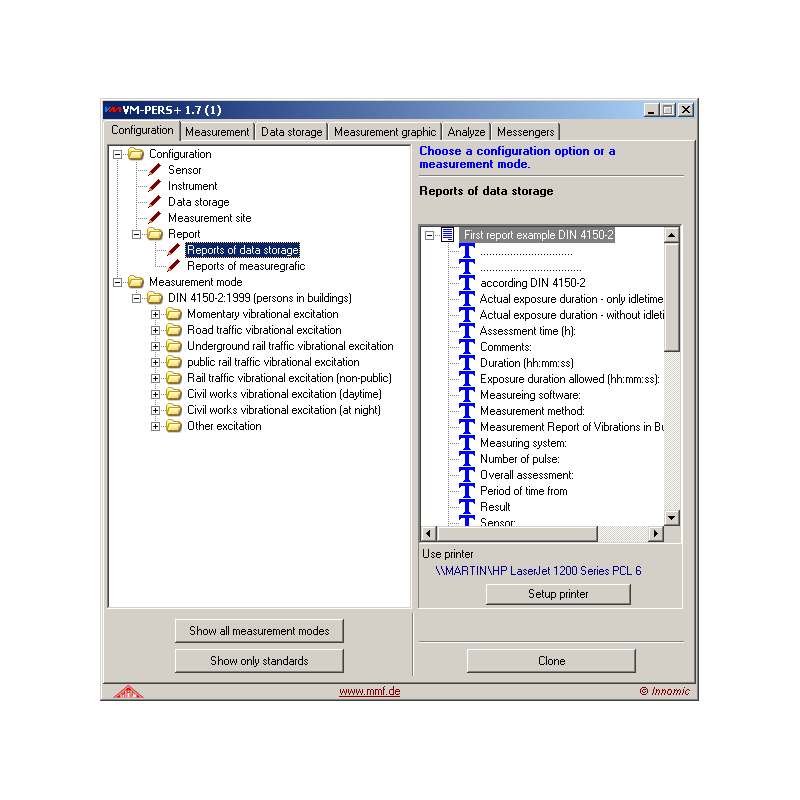

  • Simple report generation
  • Detection of main frequency
  • VM-PERS+: FFT analysis

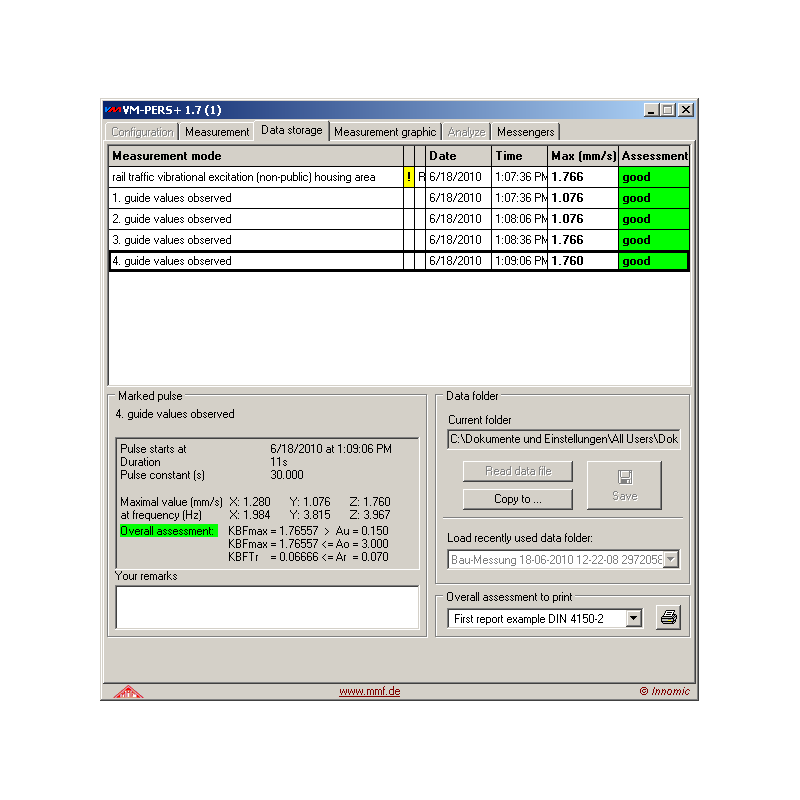

  • Saves of the time stamp of vibration events and the real-time measurands
  • Offline measurement possible

Recommended Sensor: Triaxial high sensitivity accelerometer KS823B with tripod floor plate 729

  • License key for activating the selected VibroMetra instrument
  • 1 license key = 1 measuring channel

PLEASE NOTE:

For triaxial measurement two IEPE/USB converters M312B are required.

The license is permanently assigned to the serial number of the M312B used and is stored directly on the device.
The serial number and desired measurement channel (Ch1/Ch2) must be specified at the purchase.

Downloads

Accessories for this product

  • 729

    Tripod floor plate for accelerometers

  • KS823B

    Highly Sensitive Triaxial Accelerometer

  • M312B

    VibroMetra USB Sensor Interface
