VM-BODY

VibroMetra license for whole-body vibration measurement

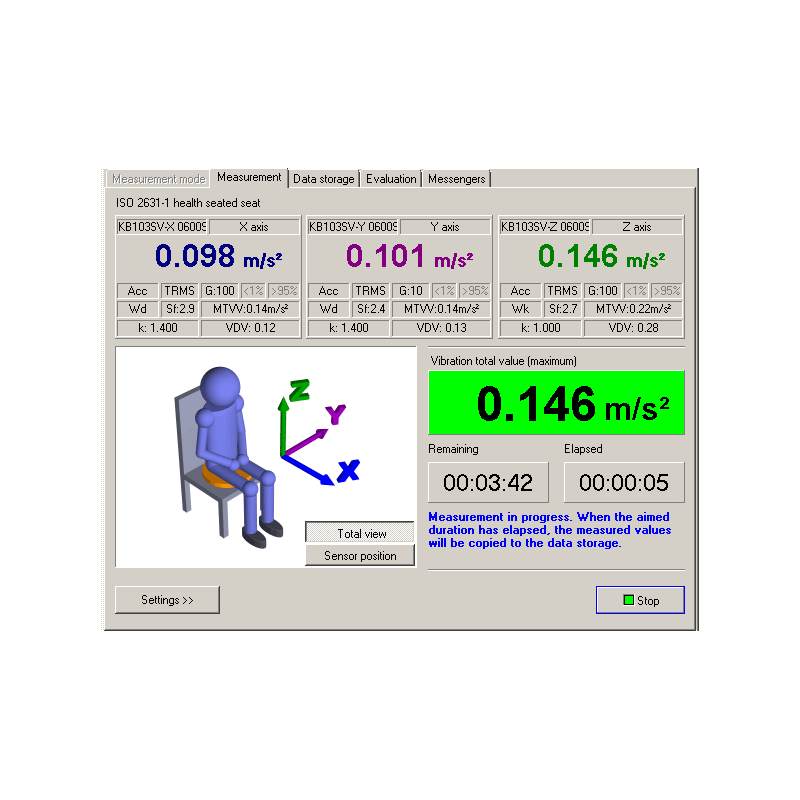

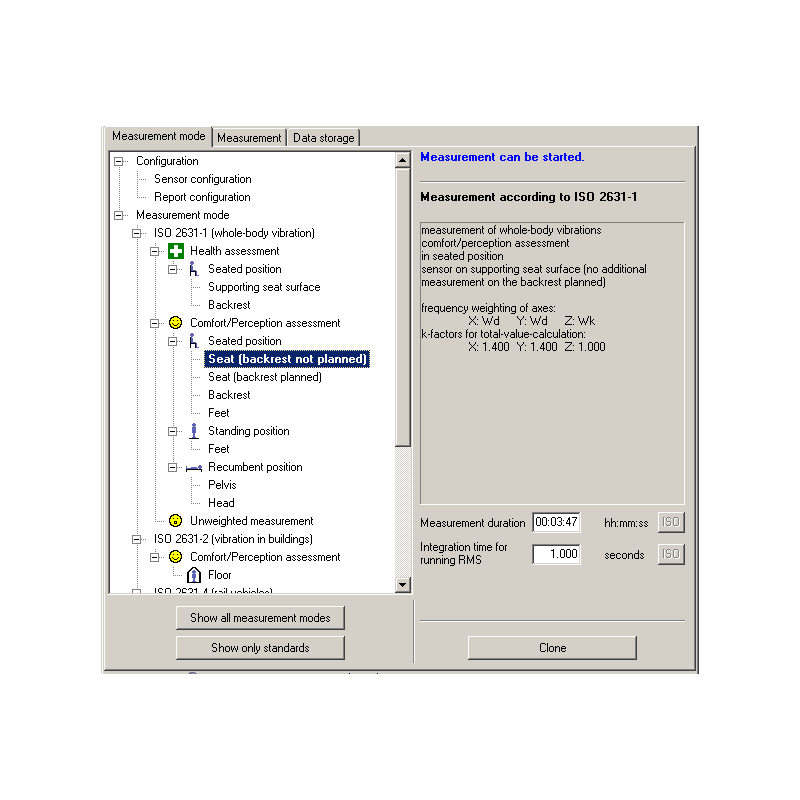

  • Measurement of whole-body vibration according to ISO 2631-1, in buildings according to ISO 2631-2 and in fixed-guideway systems according to ISO 2631-4
  • Use in conjunction with a triaxial seat cushion accelerometer, e.g. KS963B100-S
  • Measurement duration from 1 minute to 1 day
  • Safe user guidance

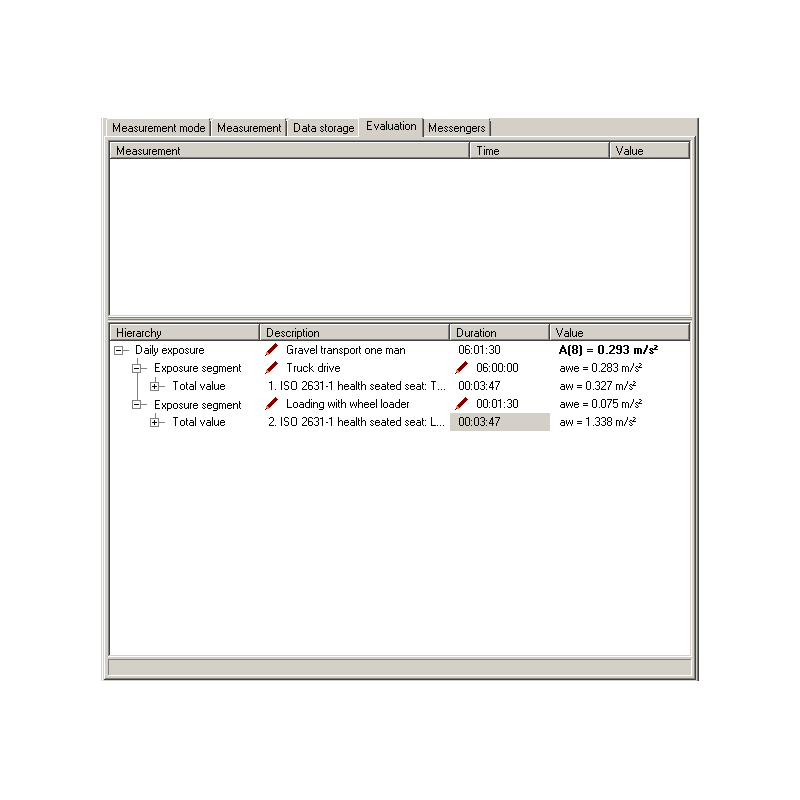

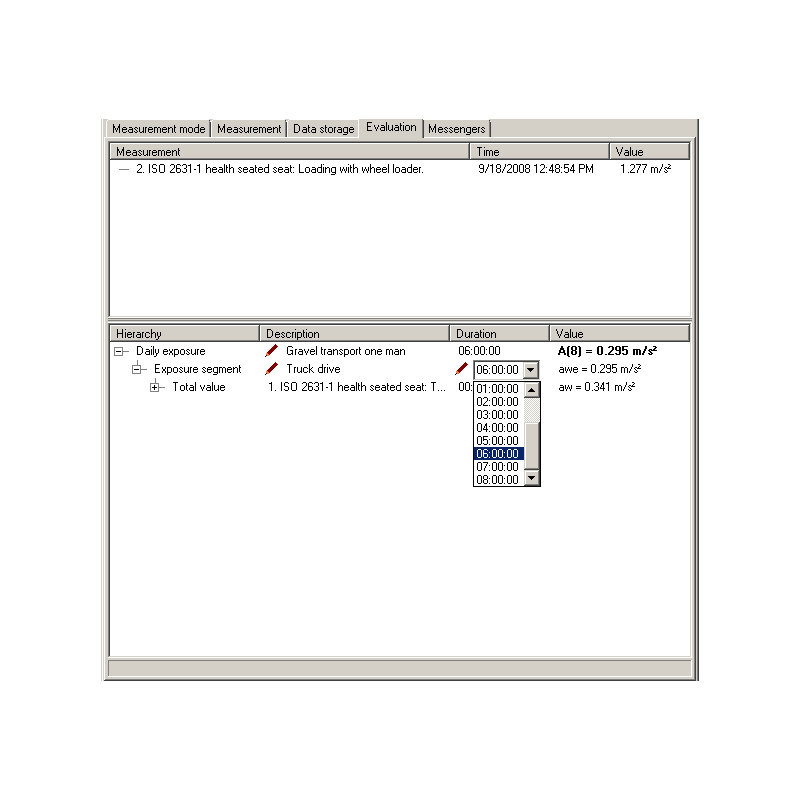

  • Good/bad evaluation of measurements

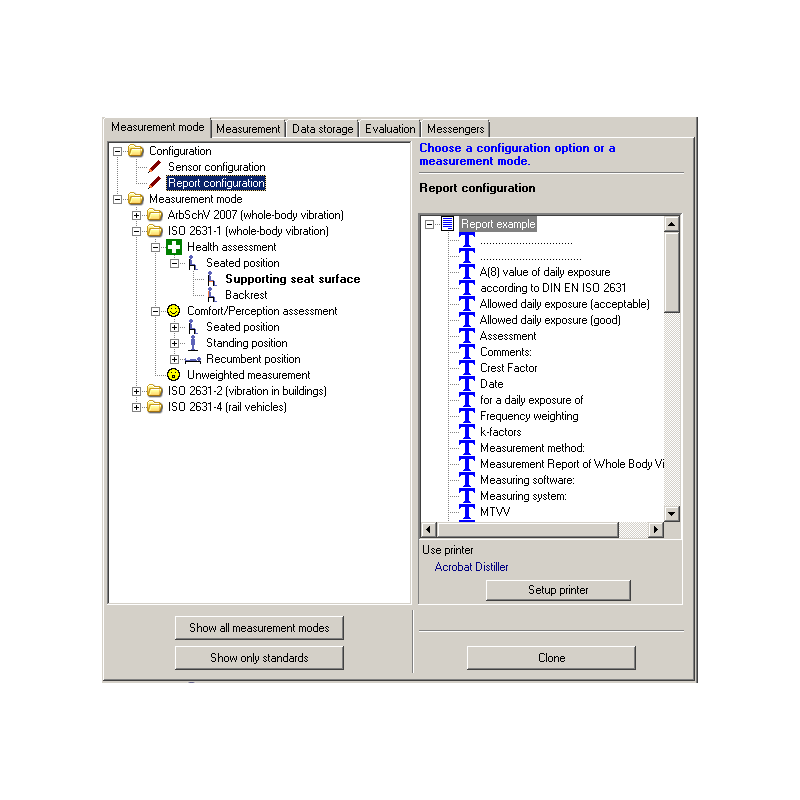

  • Protocol function with spreadsheet export
  • VM-BODY+: FFT analysis
  • Offline measurement possible
  • License key for activating the selected VibroMetra instrument
  • 1 license key = 1 measuring channel

PLEASE NOTE:

For triaxial measurement two IEPE/USB converters M312B are required.

The license is permanently assigned to the serial number of the M312B used and is stored directly on the device.
The serial number and desired measurement channel (Ch1/Ch2) must be specified at the purchase.

Downloads

Accessories for this product

  • KS963B100-S

    Triaxial Seat Cushion Accelerometer

  • M312B

    VibroMetra USB Sensor Interface
