M312B

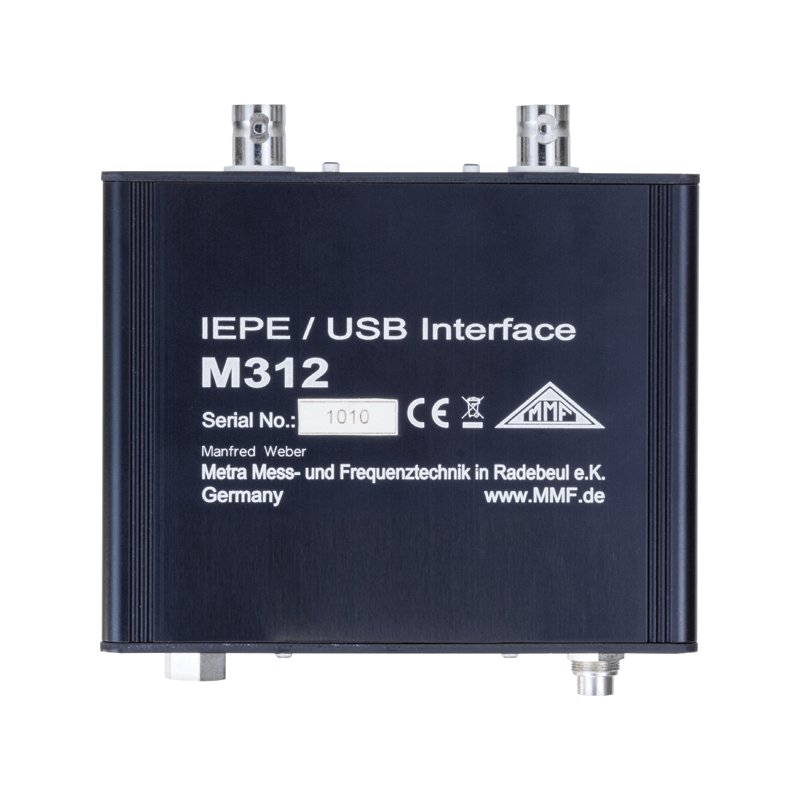

VibroMetra USB Sensor Interface

  • USB sensor interface for the VibroMetra software
  • 2 measurement channels for IEPE sensors
  • Number of channels can be expanded as required when using multiple M312B units with the M312B-S synchronisation cable
  • Digital input for speed and pulse measurement
  • TEDS support – automatic detection of sensor sensitivity
  • Driver support for all current Windows versions
Measuring inputs

2 IEPE (BNC), Tacho
Frequency range (-3 dB)

0.1 .. 40 000 Hz
Power supply

5 V (USB)
  • IEPE/USB Sensor Interface M312B
  • 2 years warranty

Note:

The device is intended for use with the VibroMetra software only. There is no driver support for other software.

Software licenses for the desired measurement instruments must be purchased separately. The licences are permanently assigned to the serial number of the device and are stored directly on it.

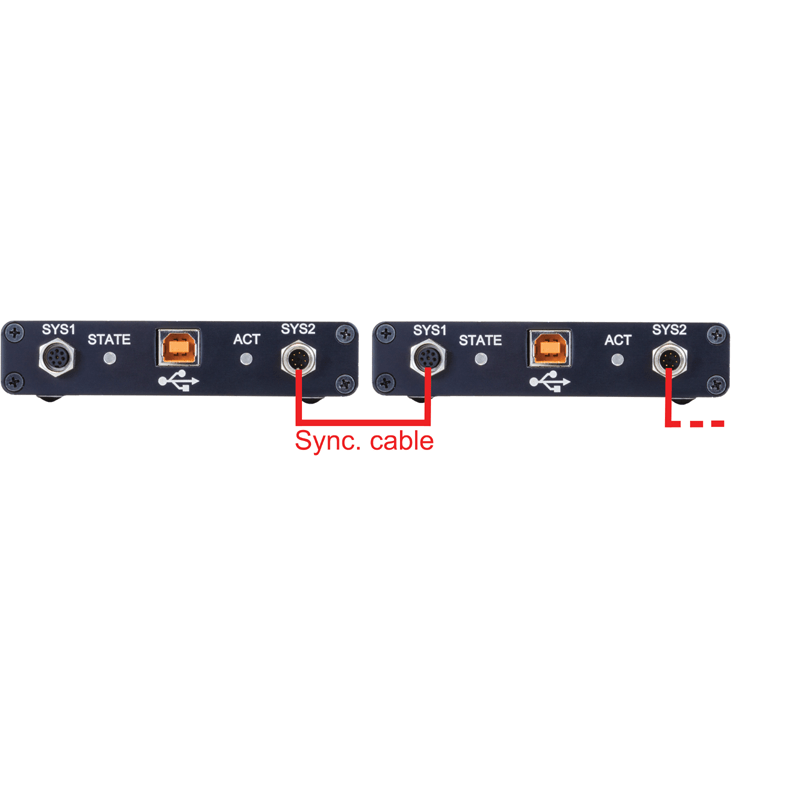

If several M312B units are used at one PC they have to be interconnected by M312B-S synchronisation cables.



Downloads

Accessories for this product

  • M312B-S

    Synchronisation Cable for M312B

  • VM-PS

    Photoelectrir reflex switch with magnetic stand

  • VM-METER

    VibroMetra license for overall value display

  • VM-PLOT

    VibroMetra license for plotting overall values

  • VM-SCOPE

    VibroMetra license for oscilloscope

  • VM-FFT

    VibroMetra license for frequency analysis

  • VM-OCT+

    VibroMetra license for third octave and octave band analysis

  • VM-FFT 3D

    VibroMetra license for waterfall frequency analysis

  • VM-HAND

    VibroMetra license for hand-arm vibration measurement

  • VM-BODY

    VibroMetra license for whole-body vibration measurement

  • VM-STRUC

    VibroMetra license for the measurement of building vibration according to DIN 4150-3

  • VM-SHIP

    VibroMetra license for the measurement of ship vibration

  • VM-PERS

    VibroMetra license for building vibration measurement according to DIN 4150-2

  • VM-BAL

    VibroMetra license for rotor balancing

  • VM-REC

    VibroMetra-Lizenz for raw data recording

  • VM-MAIL

    VibroMetra license for event messenger via email

  • VM-ADAM

    VibroMetra license for event messenger via digital outputs

  • VM-SE FMP

    VibroMetra combi license with analyzer, meter and plotter for 2 channels

  • VM-SE FMS

    VibroMetra combi license with analyzer, meter and scope for 2 channels
