M208A

8-channel IEPE amplifier

  • For piezoelectric sensors with IEPE output
  • TEDS support – automatic detection of sensor sensitivity
  • Inputs and outputs via BNC sockets on the front panel
  • Shared output
  • Switchable gain
  • Filtering and integration by plug-in modules

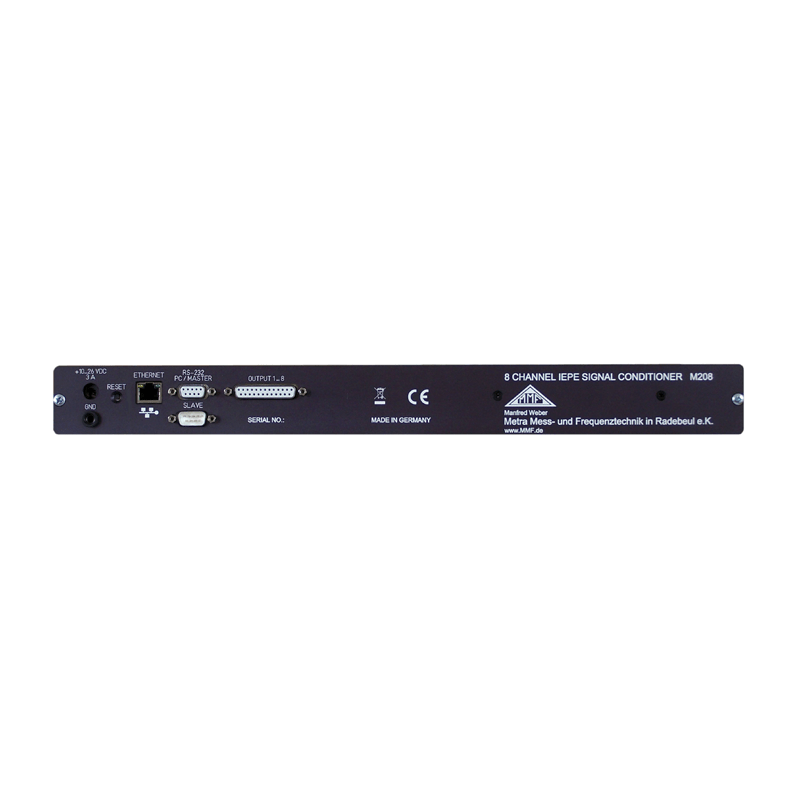

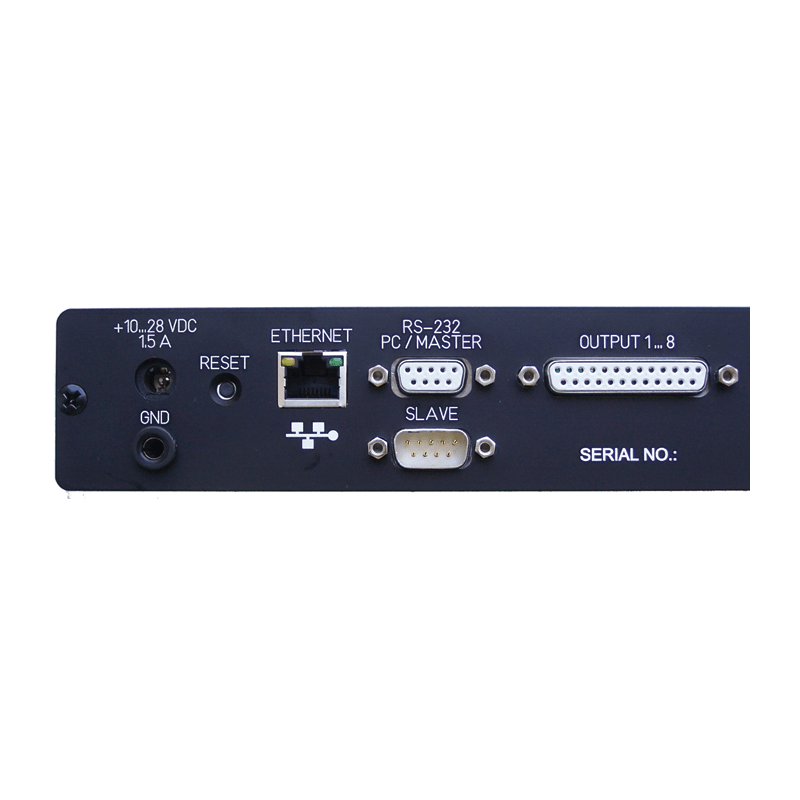

  • Setting via front keys and via serial interface on the rear side

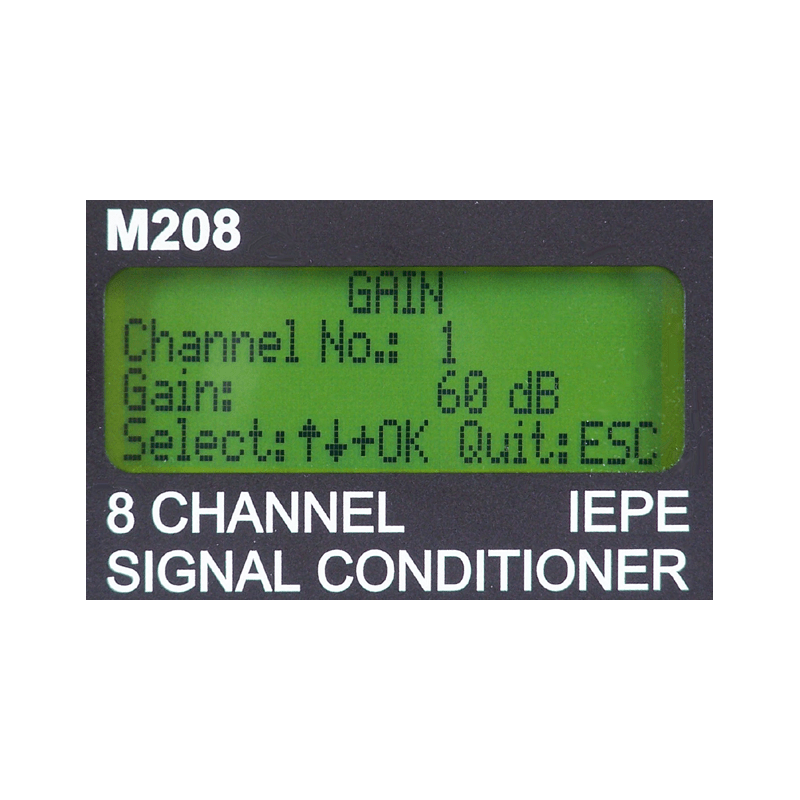

  • Operation and measured value monitor (RMS/Peak) via LCD
Channel number

8
Inputs

AC voltage, IEPE, IEPE+AC
Output(s)

AC, Relay
Gain voltage

1, 10, 100, 1000
Integrators

simple (FBV plug-in module), double (FBD plug-in module)
Low pass filter

Plug-in module FB2
High pass filter

Plug-in module FB3
Transducer sensitivity adjustable

Interface, Keys/display
Power supply

10 .. 28 V
  • IEPE Signal Conditioner M208A
  • Mains plug adapter 115/230 VAC; 15 VDD; <1600 mA
  • 2 years warranty

PLEASE NOTE:

A low pass module FB2 is required for operation (ordered separately). A high pass module FB3 can be ordered as an option. Alternatively, the FBV or FBD integrator modules can be used.

Downloads

Accessories for this product

  • FB2

    Plug-in low pass filters

  • FB3

    Plug-in high pass filters

  • FBD

    Double integrator plug-in modules

  • FBV

    Single integrator plug-in modules

    • Related products

    M208A M208B
    Channel number 8 8
    Inputs AC voltage, IEPE, IEPE+AC AC voltage, IEPE, IEPE+AC
    Output(s) AC, Relay AC
    Gain voltage 1, 10, 100, 1000 1, 10, 100, 1000
    Integrators simple (FBV plug-in module), double (FBD plug-in module) simple (FBV plug-in module), double (FBD plug-in module)
    Low pass filter Plug-in module FB2 Plug-in module FB2
    High pass filter Plug-in module FB3 Plug-in module FB3
    Transducer sensitivity adjustable Interface, Keys/display -
    Power supply 10 .. 28 V 10 .. 28 V
