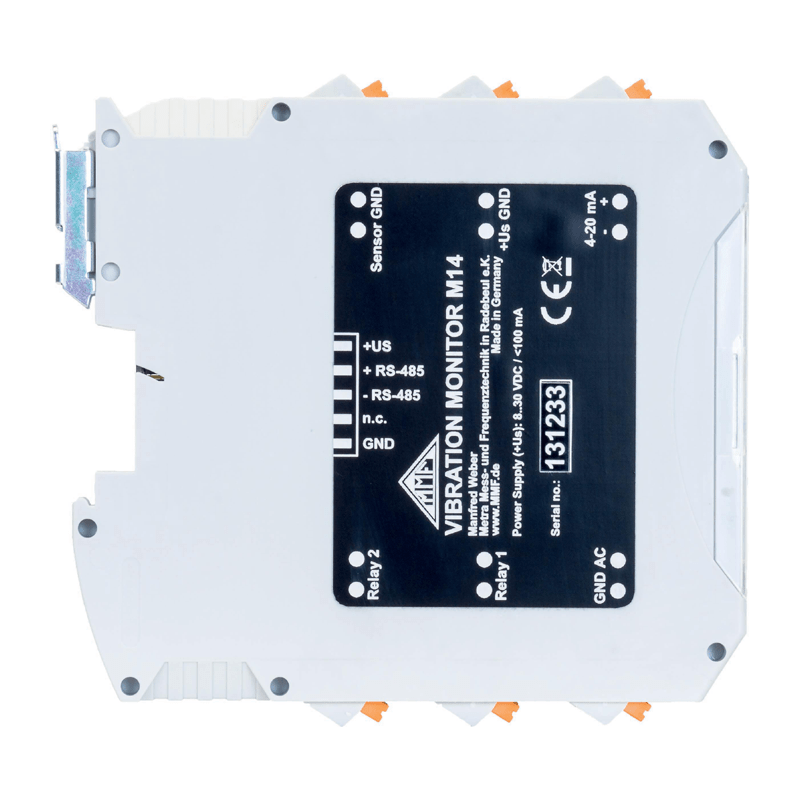

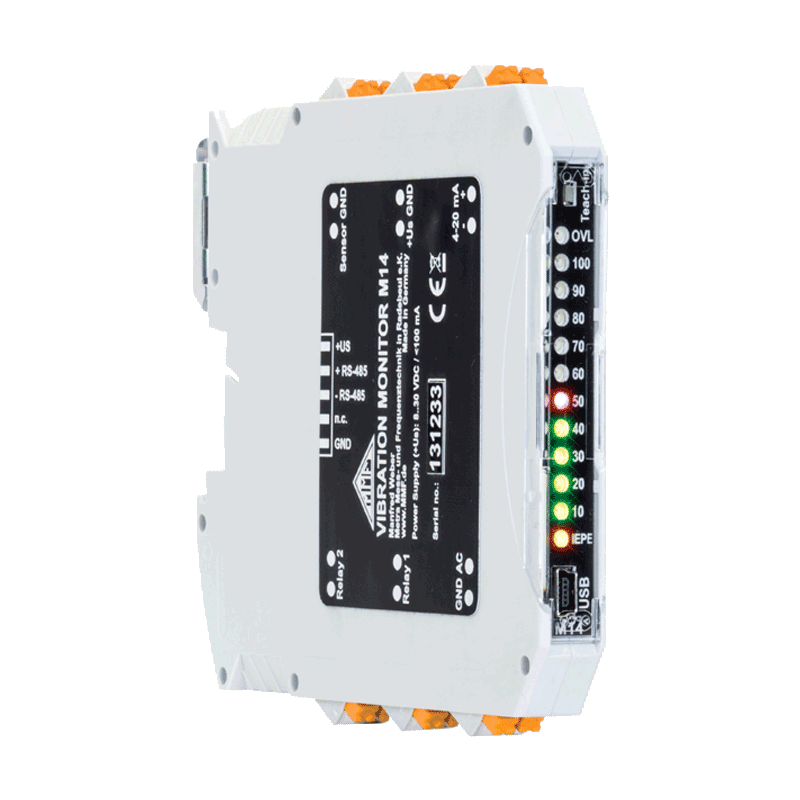

M14

Vibration monitoring

  • Unbalance vibration monitoring according to ISO 10816 / ISO 20816
  • Monitoring of bearing vibration

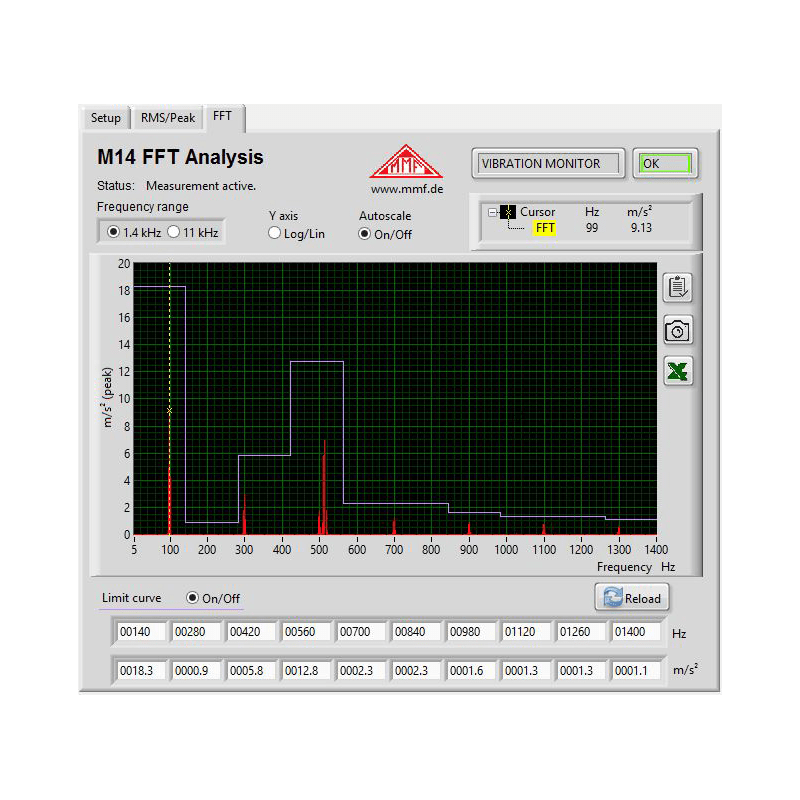

  • Frequenzselektive Überwachung einzelner Schwingfrequenzen mit FFT
  • Input for IEPE compatible sensors

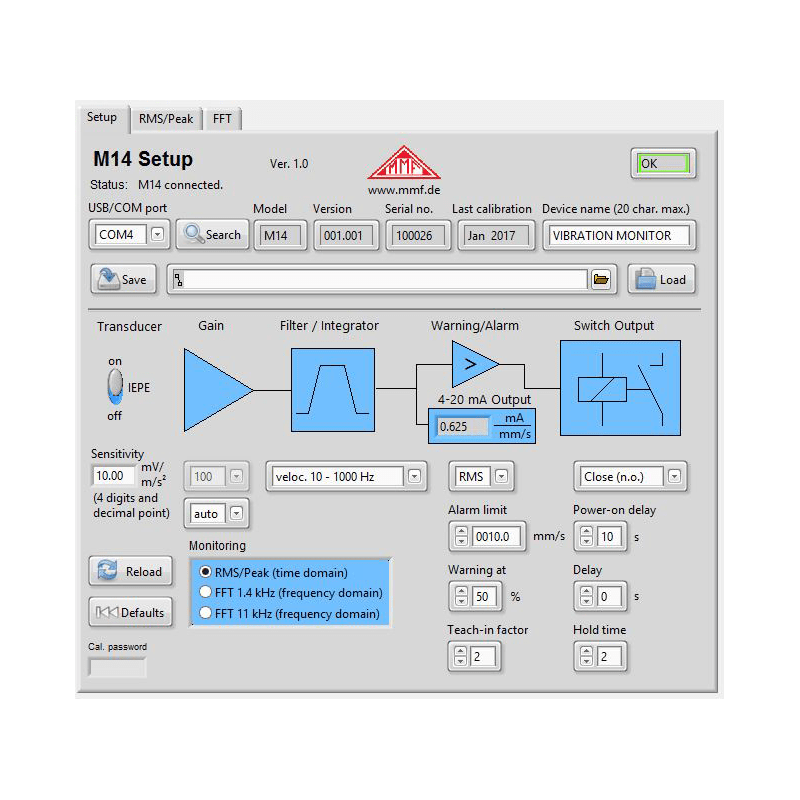

  • Device setup via front-side USB

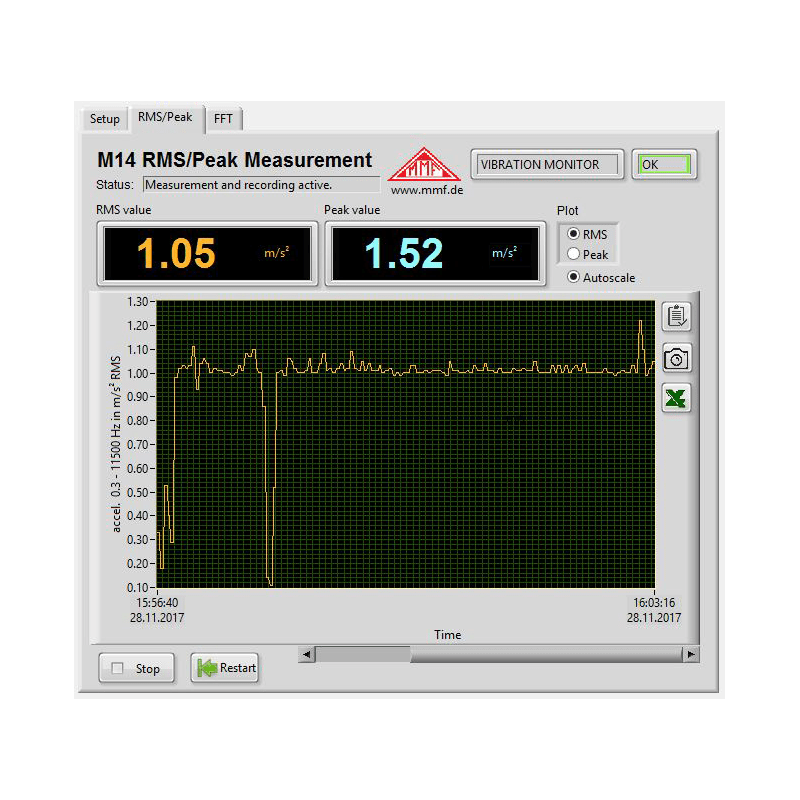

  • RMS/Peak monitoring
  • Programmable high pass and low pass filters

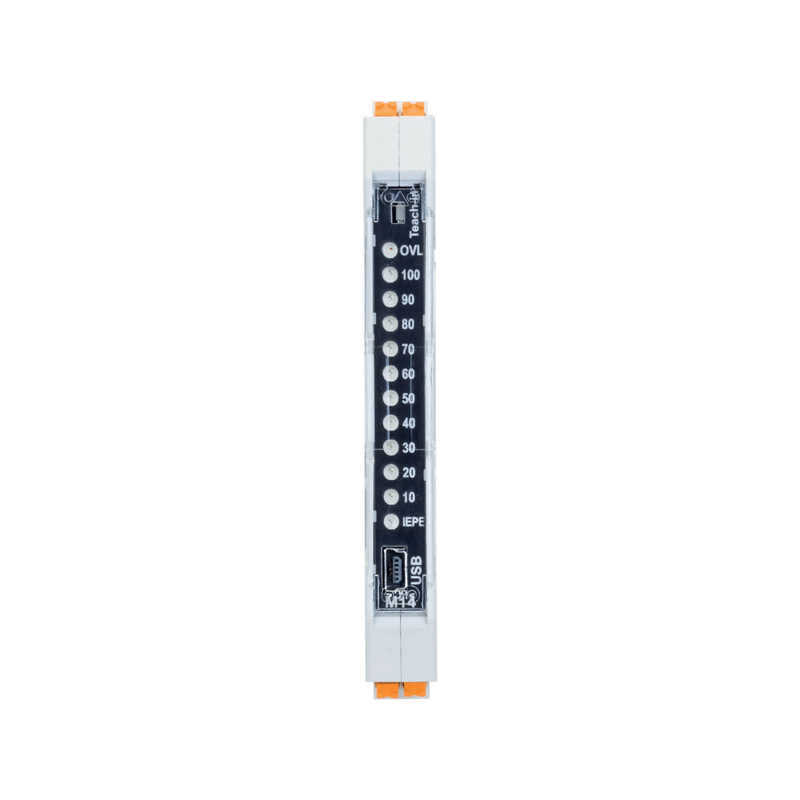

  • LED level bargraph on front side
  • Relay outputs for warning and alarm with programmable thresholds and delays
  • Isolated 4 .. 20 mA current loop output
  • RS-485 DIN rail connector with MODBUS RTU protocol for setup and measurement
  • Stackable on 35 mm DIN rail
Inputs

AC voltage, IEPE, IEPE+AC
Output(s)

4 .. 20 mA, AC, Relay
Monitoring functions

RMS, Peak value, FFT
Measurand

Acceleration, Velocity
Frequency range acceleration

0.3 .. 10 000 Hz, div. Filter
Frequency range velocity

2 .. 1000 Hz, div. Filter
Frequency range displacement

–
High pass filter

5 Hz, 20 Hz, 200 Hz, 10 Hz, 50 Hz, 100 Hz, 500 Hz, 1000 Hz
Low pass filter

0.1 kHz, 0.2 kHz, 0.5 kHz, 1 kHz, 2 kHz, 5 kHz, 10 kHz
Transducer sensitivity adjustable

Interface
Power supply

8 .. 30 V
Connection

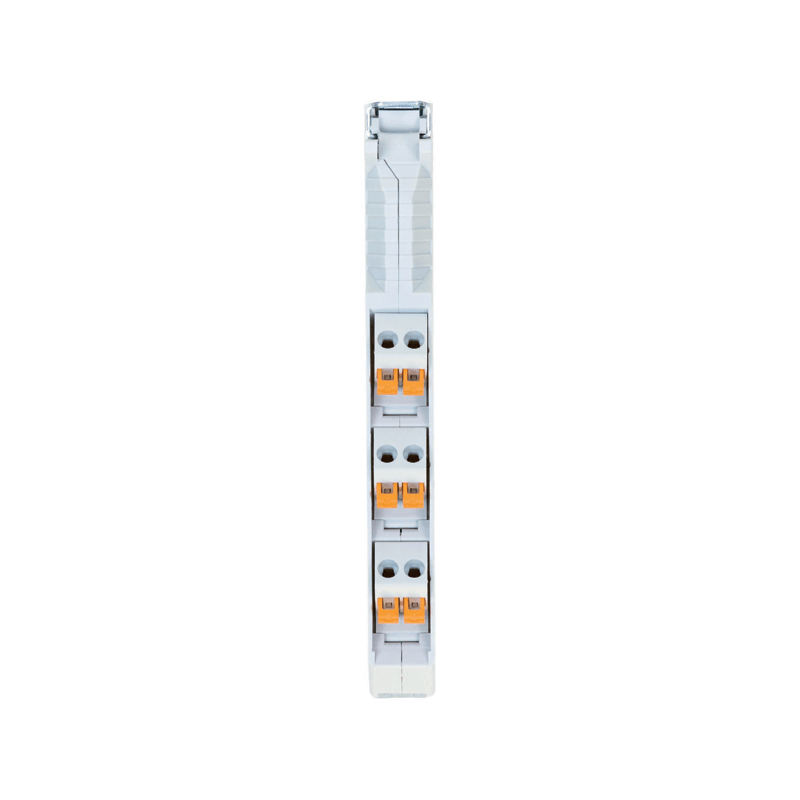

Spring terminals
Mounting

DIN rail (35 mm)
  • Signal Conditioner Module M14

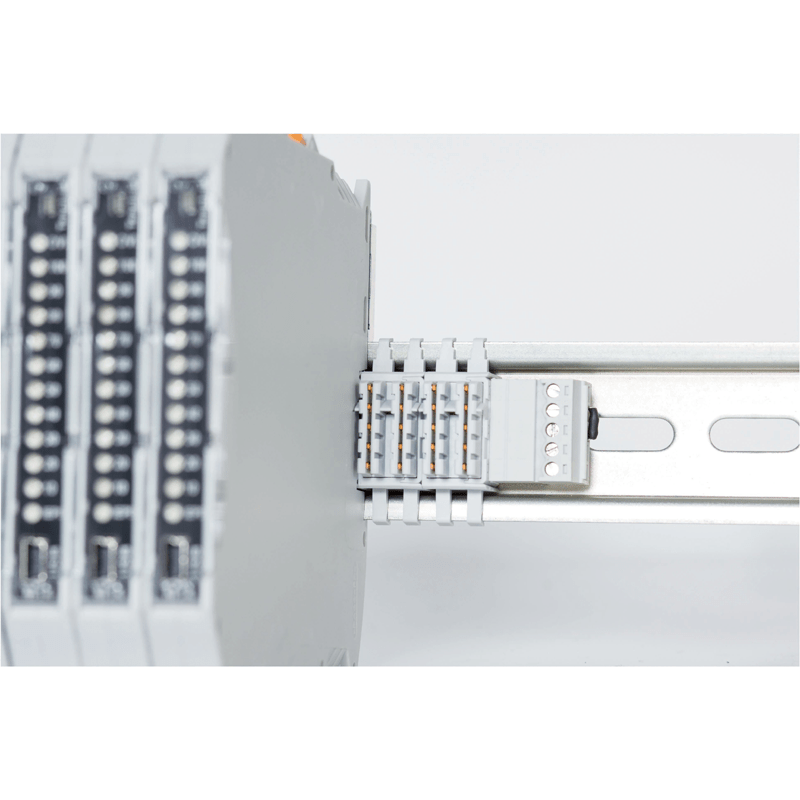

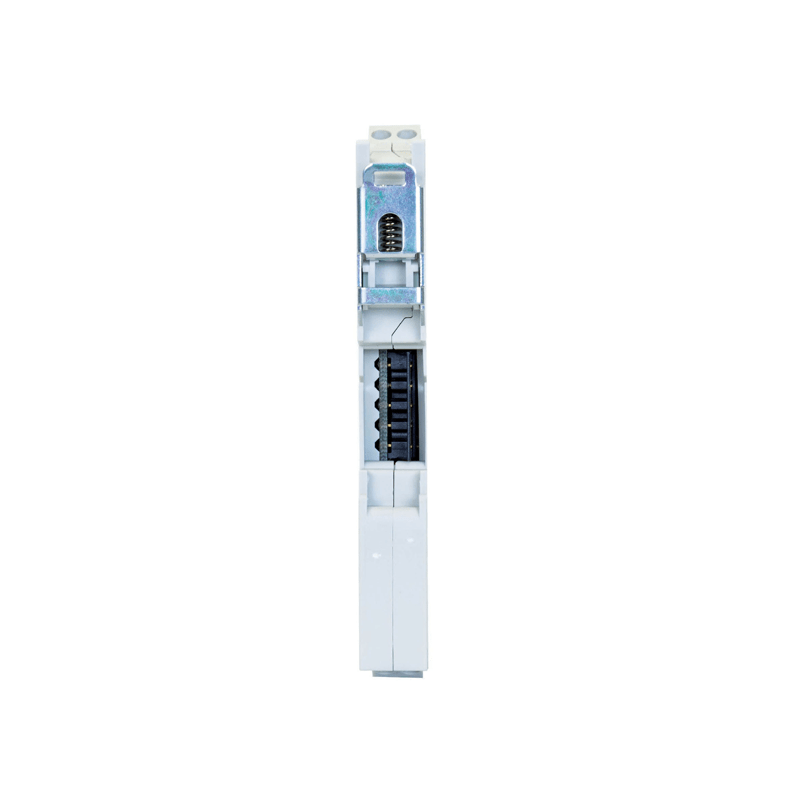

  • M14-BUS3: Bus connection for power supply and RS-485 via DIN rail
  • 2 years warranty
