KS97B100

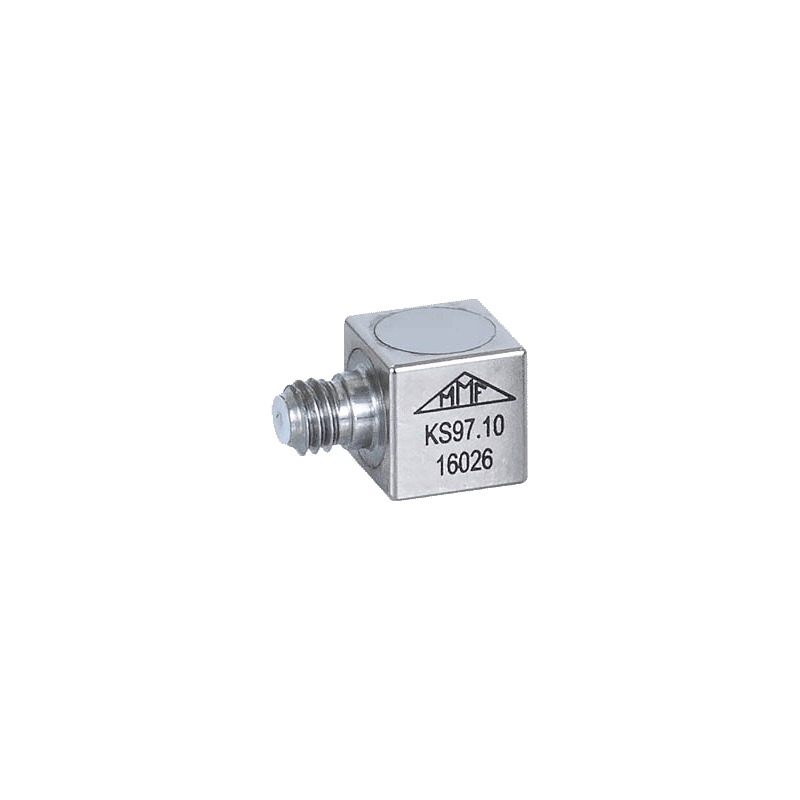

Miniature accerometer with TEDS

This piezoelectric accelerometer is suitable for light measurement objects and for applications where small sensor dimensions are important, particularly in modal analysis.

Another advantage is the high upper cut-off frequency.

Due to the extremely low-noise piezoelectric measuring principle, equally high accelerations and, in conjunction with an appropriate amplifier, very low accelerations can be recorded.

Contains an electronic data sheet (TEDS).

Output

IEPE
Mass

3.2 g
Sensitivity

100 mV/g
Measuring range

600 m/s²
Lower frequency limit (3 dB)

0.15 Hz
Upper frequency limit (3 dB)

13 kHz

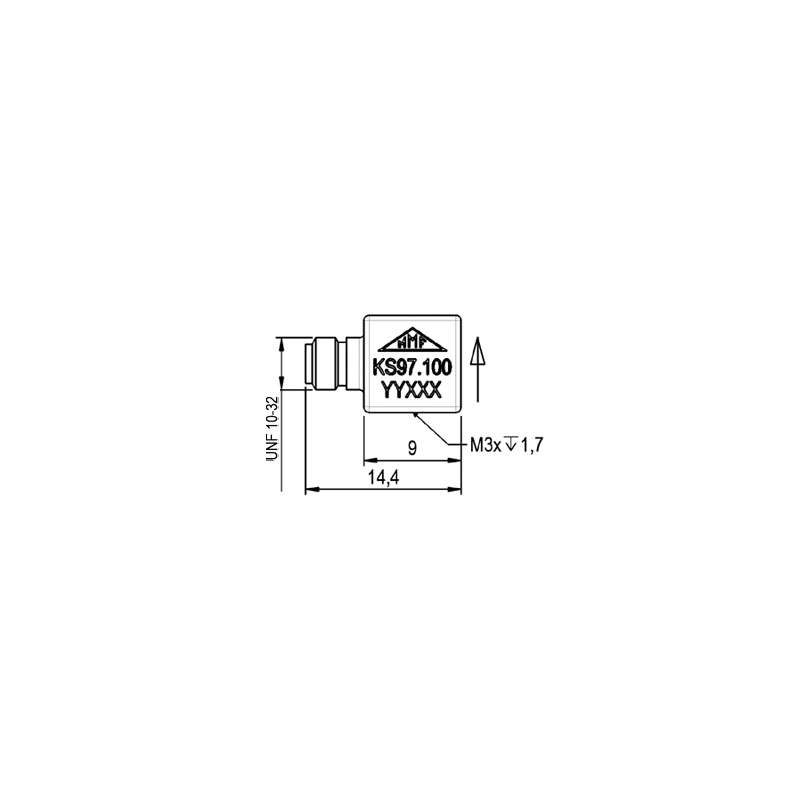

Connection

UNF 10-32, radial

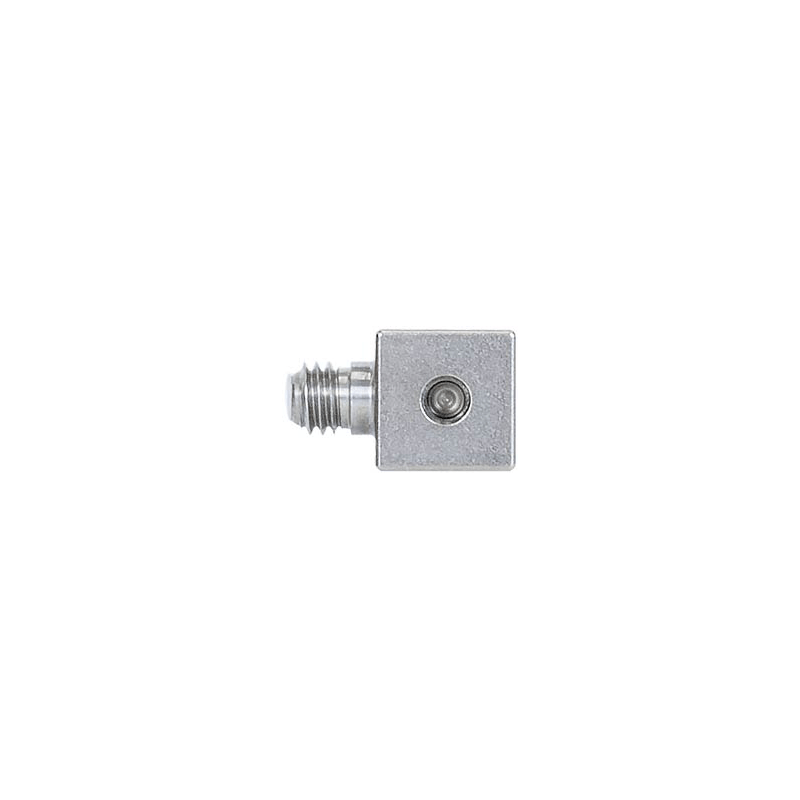

Mounting

M3 thread (female)
Working temperature range

-40 .. 100 °C

KS97B100 : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty
  • Case

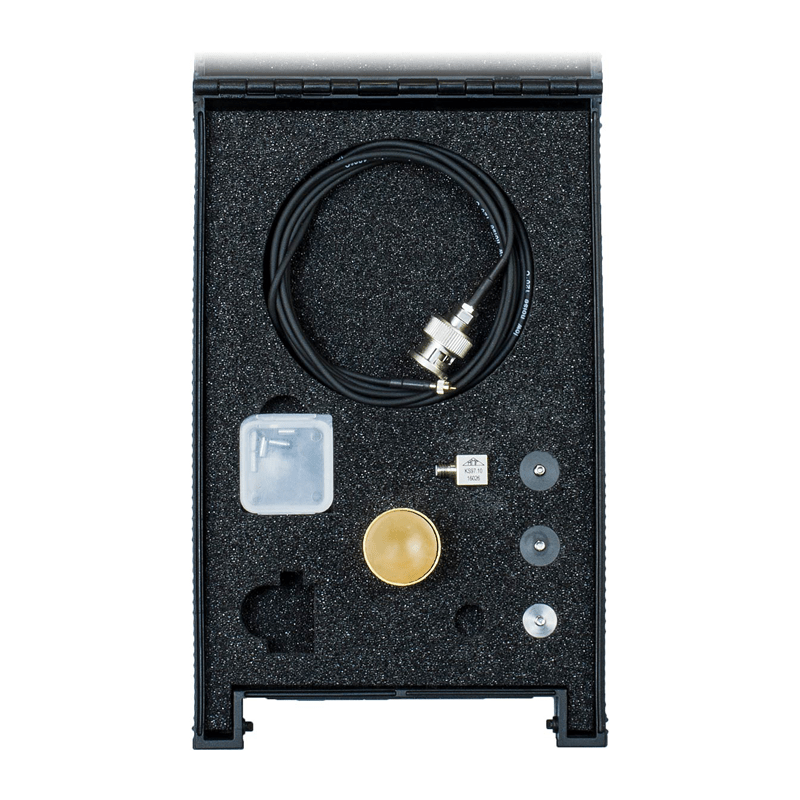

KS97B100 /01: with accessories kit

  • Sensor with calibration data sheet
  • 009-UNF-BNC-1,5: Low-noise cablel; 1,5 m; 120 °C; Ø2,1
  • 021: Stud bold; M3 x 6
  • 002: Adhesive wax
  • 106: Insulating flange; 2 x M3; Ø12; 110 °C
  • 129: Adhesive insulating; flange M3; Ø12; 110 °C
  • 108: Rare-earth magnetic base; M3; Ø10; 120 °C
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!
