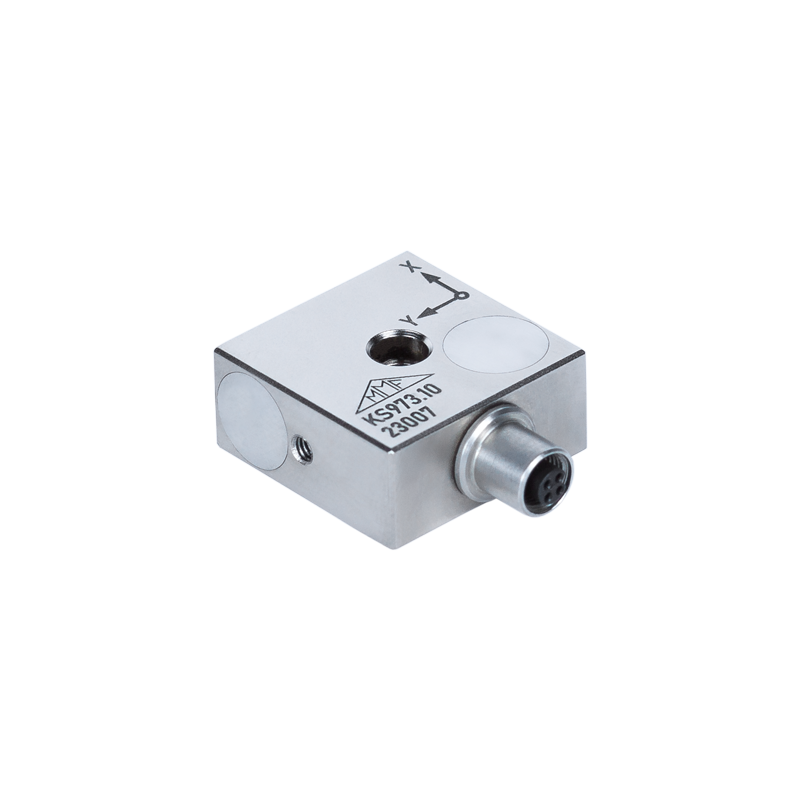

KS973.10

Low-noise cable

Triaxial accelerometer in flat design with through-hole for general applications and modal analysis with an protection rating of IP67.

Contains an electronic data sheet TEDS (interface with DS2431).

Output

IEPE
Axes

triaxial
Mass

12.5 g
Sensitivity

10 mV/g
Measuring range

5000 m/s²
Lower frequency limit (3 dB)

0.2 Hz
Upper frequency limit (3 dB)

18 kHz
Broadband Resolution (rms)

3 mg
Connection

Binder 707 (M5)
Mounting

Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y)
Working temperature range

-40 .. 120 °C
Protection

IP67
TEDS

yes

KS973.10 : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty

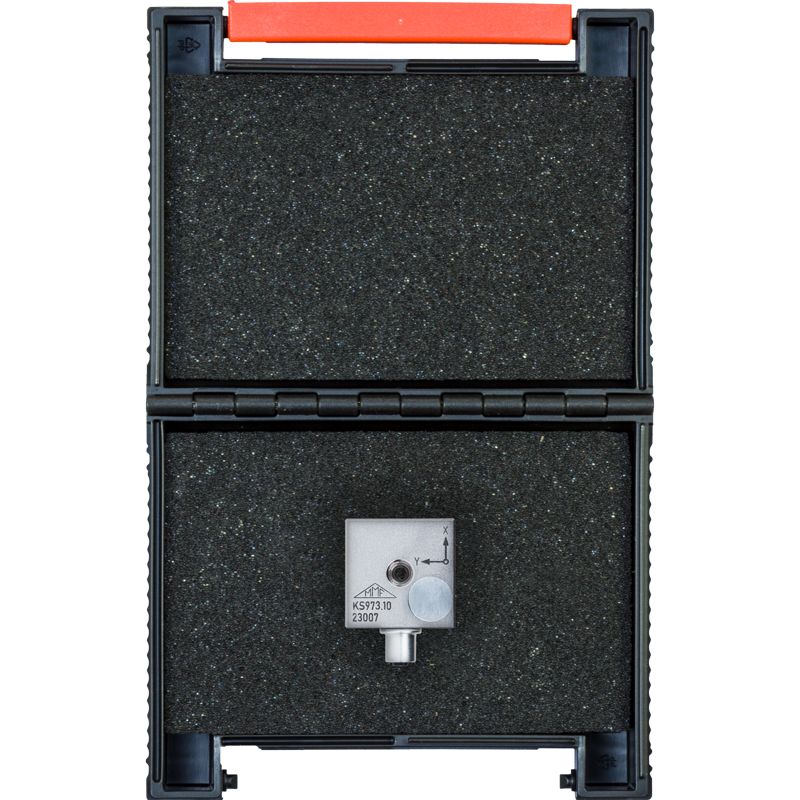

  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads

Accessories for this product

  • 027

    Calibration Adapter for KS963/KS973

  • 034-B711f-BNC

    IEPE cable adapter Binder 711, 4-pin, female to 3 x BNC, male.

  • 038

    Instant glue

  • 091-B707-B711-3

    IEPE cable for triaxial accelerometers with Binder 707 and Binder 711 connectors

  • 092-B707-B711-5

    IEPE cable for triaxial accelerometers with Binder 707 (IP67) and Binder 711 connectors

  • 308

    Rare-earth magnetic base, large, M3 (male)

  • 329

    Adhesive pad, insulating, large, M3 (male)

  • M208A

    8-channel IEPE amplifier
    • Load more

    Related products

    KS973.10 KS963B10 KS963B100 KS973.100
    Output IEPE IEPE IEPE IEPE
    Axes triaxial triaxial triaxial triaxial
    Mass 12.5 g 8.5 g 11 g 15 g
    Sensitivity 10 mV/g 10 mV/g 100 mV/g 100 mV/g
    Measuring range 5000 m/s² 5000 m/s² 600 m/s² 600 m/s²
    Lower frequency limit (3 dB) 0.2 Hz 0.2 Hz 0.15 Hz 0.15 Hz
    Upper frequency limit (3 dB) 18 kHz 18 kHz 10 kHz 10 kHz
    Broadband Resolution (rms) 3 mg 3 mg 0.4 mg 0.4 mg
    Connection Binder 707 (M5) 1/4-28 UNF, 4 pins 1/4-28 UNF, 4 pins Binder 707 (M5)
    Mounting Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y) Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y) Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y) Through hole ø2.6, M3 thread (Z), M2.5 thread (X/Y)
    Working temperature range -40 .. 120 °C -40 .. 120 °C -40 .. 100 °C -40 .. 100 °C
    Protection IP67 IP60 IP60 IP67
    TEDS yes yes yes yes
