KS963B100

Triaxial Accelerometer

Triaxial accelerometers in flat design for general applications and modal analysis.

Contains an electronic data sheet (TEDS).

Output

IEPE
Mass

11 g
Sensitivity

100 mV/g
Measuring range

600 m/s²
Lower frequency limit (3 dB)

0.15 Hz
Upper frequency limit (3 dB)

10 kHz
Connection

1/4-28 UNF, 4 pins
Mounting

M3 thread (Z), Through hole ø2.6
Working temperature range

-40 .. 100 °C

KS963B100 : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty
  • Case

KS963B100 /01: with accessories kit

  • Sensor with calibration data sheet
  • 091-CMR-B711-3: IEPE Triaxial cable; 3 m; 1/4“-28 / Binder 711; 120 °C; Ø2,1
  • 034-B711f-BNC: IEPE cable adapter; 0.5 m; Binder 711 / 3x BNC; 80 °C
  • 708: Rare earth magnetic base; M5; SW15; 120 °C
  • 029: Adhesive insulating flange; M5; Ø15; >250 °C
  • 003: Stud bolt; M5 x 8
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads

Accessories for this product

  • 027

    Calibration Adapter for KS963/KS973

  • 034-B711f-BNC

    IEPE cable adapter Binder 711, 4-pin, female to 3 x BNC, male.

  • 038

    Instant glue

  • 091-CMR-B711-3

    IEPE cable for triaxial accelerometers with 1/4″-28 UNF and Binder 711 connectors

  • 141B

    Adapter für Spannbandmontage auf gekrümmten Flächen; M2,5

  • 143B

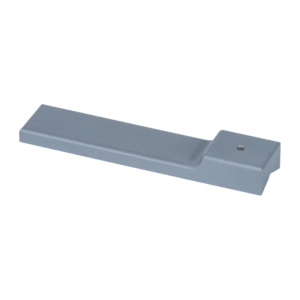

    Hand-held adapter for curved surfaces; M2.5

  • 308

    Rare-earth magnetic base, large, M3 (male)

  • 329

    Adhesive pad, insulating, large, M3 (male)
    • Load more

    Related products

    KS963B100 KS963B10 KS973.10 KS973.100
    Output IEPE IEPE IEPE IEPE
    Mass 11 g 8.5 g 12.5 g 15 g
    Sensitivity 100 mV/g 10 mV/g 10 mV/g 100 mV/g
    Measuring range 600 m/s² 5000 m/s² 5000 m/s² 600 m/s²
    Lower frequency limit (3 dB) 0.15 Hz 0.2 Hz 0.2 Hz 0.15 Hz
    Upper frequency limit (3 dB) 10 kHz 18 kHz 18 kHz 10 kHz
    Connection 1/4-28 UNF, 4 pins 1/4-28 UNF, 4 pins Binder 707 Binder 707
    Mounting M3 thread (Z), Through hole ø2.6 M3 thread (Z), Through hole ø2.6 M2.5 thread (X/Y), M3 thread (Z), Through hole ø2.6 M2.5 thread (X/Y), M3 thread (Z), Through hole ø2.6
    Working temperature range -40 .. 100 °C -40 .. 120 °C -40 .. 120 °C -40 .. 100 °C
    IP codes - - IP67 IP67
