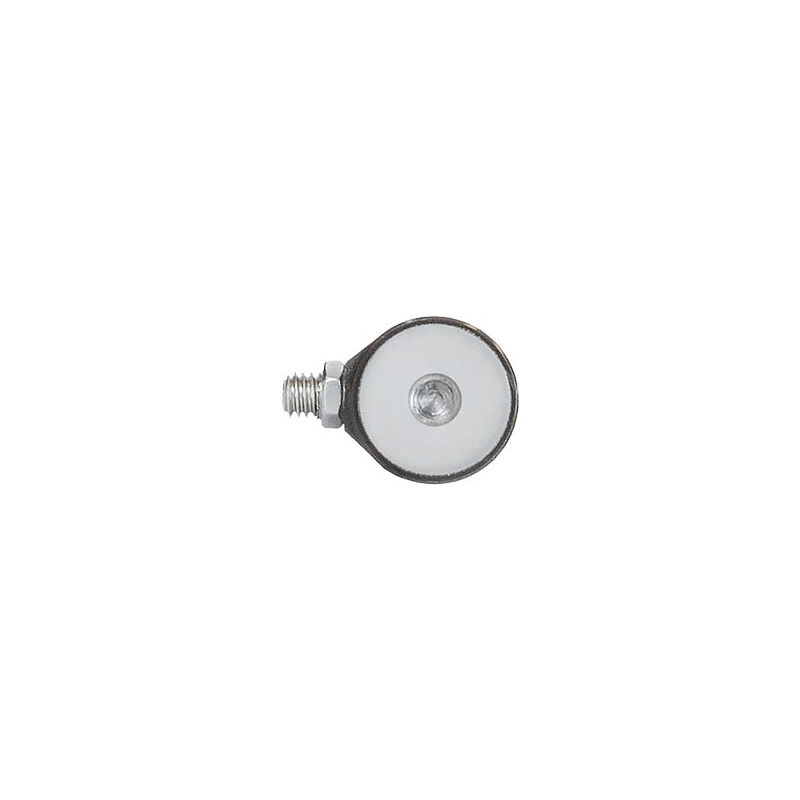

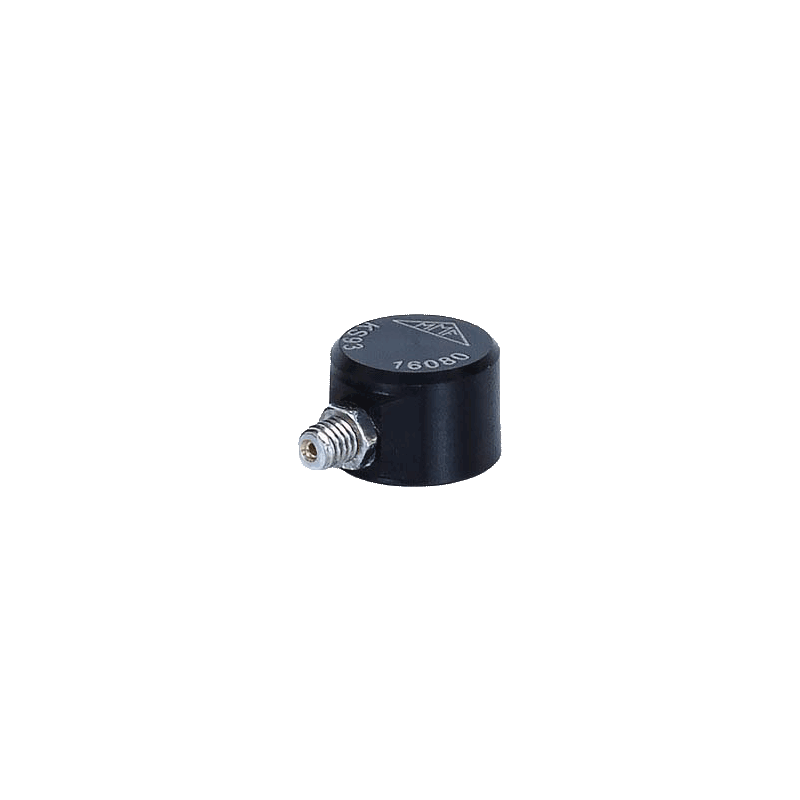

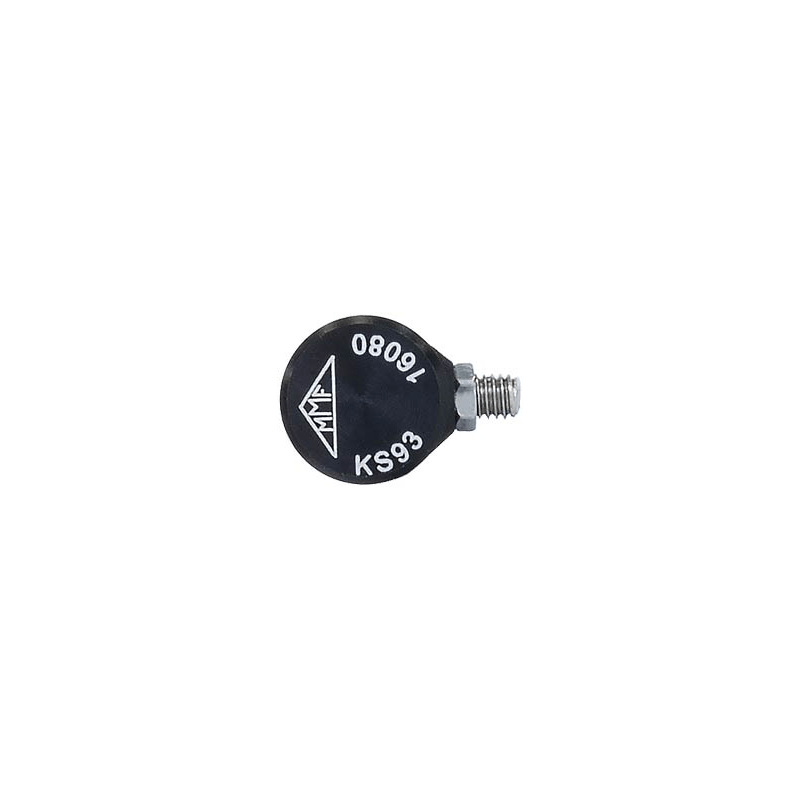

KS93

Miniature Accelerometer

This piezoelectric accelerometer is suitable for lightweight measurement objects and for applications where small sensor dimensions are important.

Another advantage is the high upper cut-off frequency.

Due to the extremely low-noise piezoelectric measuring principle, equally high accelerations and, in conjunction with an appropriate amplifier, very low accelerations can be recorded.

The KS93 has a charge output and is therefore suitable for measuring high accelerations.



Output

Charge
Axes

uniaxial
Mass

2.7 g
Sensitivity

5 pC/g
Measuring range

60000 m/s²
Upper frequency limit (3 dB)

25 kHz

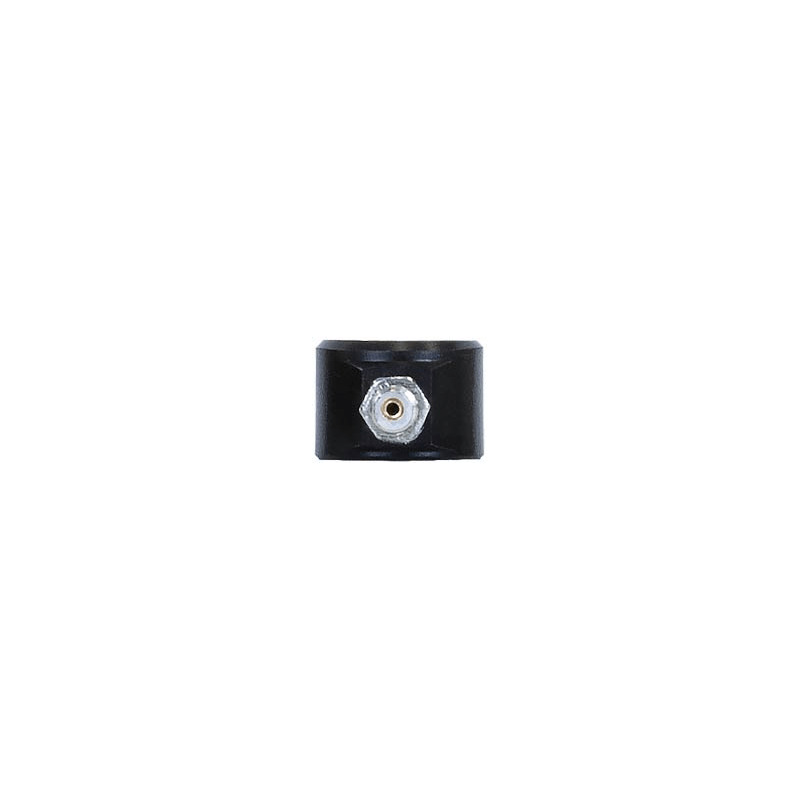

Connection

Subminiatur M3, radial
Mounting

M3 thread (female)
Working temperature range

-20 .. 150 °C
Protection

IP60

KS93 : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty

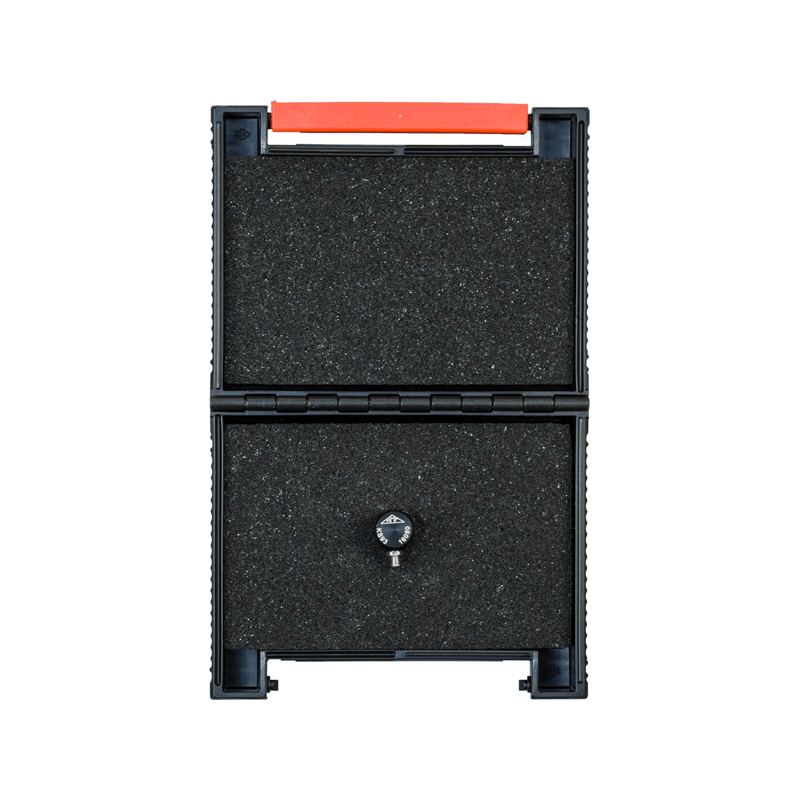

  • Case

KS93 /01: with accessories kit

  • Sensor with calibration data sheet
  • 009-SUB-BNC-1,5: Low-noise cable; 1,5 m; 120 °C; Ø2,1
  • 021: Stud bold; M3 x 6
  • 002: Adhesive wax
  • 106: Insulating flange; 2 x M3; Ø12; 110 °C
  • 129: Adhesive insulating; flange M3; Ø12; 110 °C
  • 108: Rare-earth magnetic base; M3; Ø10; 120 °C
  • 2 years warranty
  • Case



PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!
