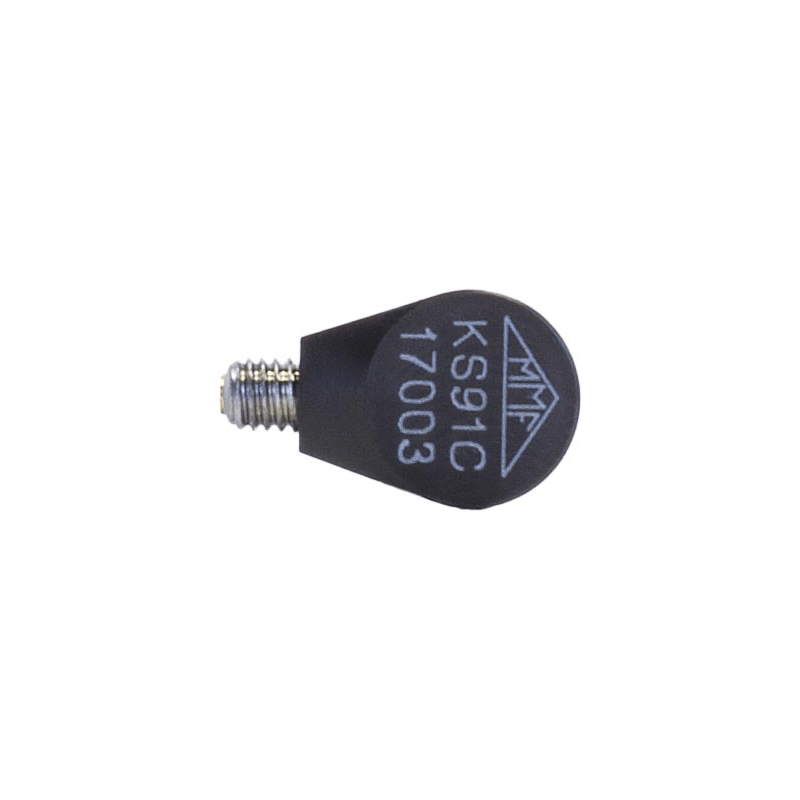

KS91C

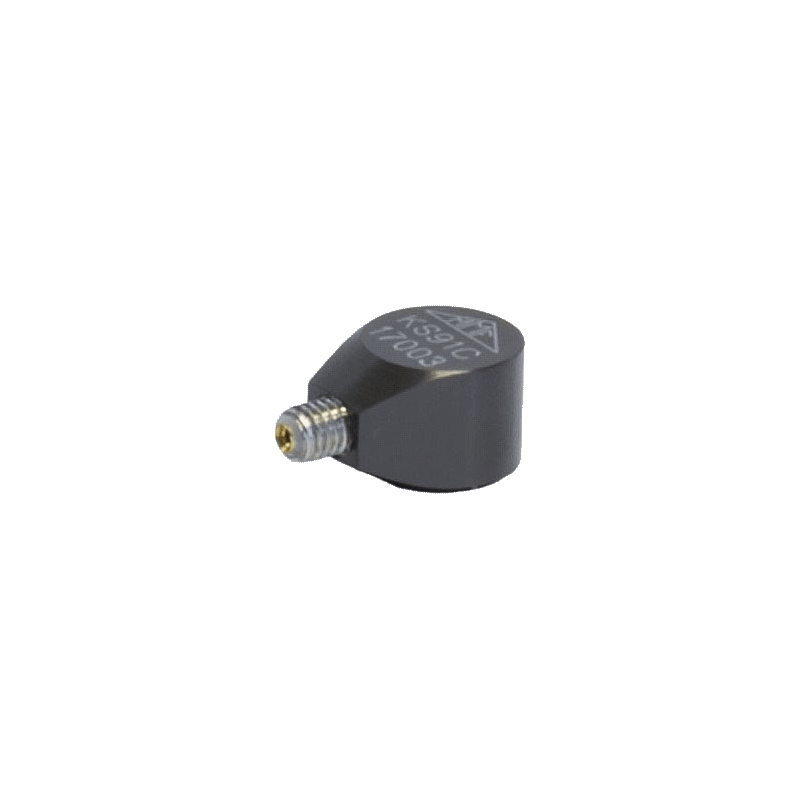

KS91C - Image 2

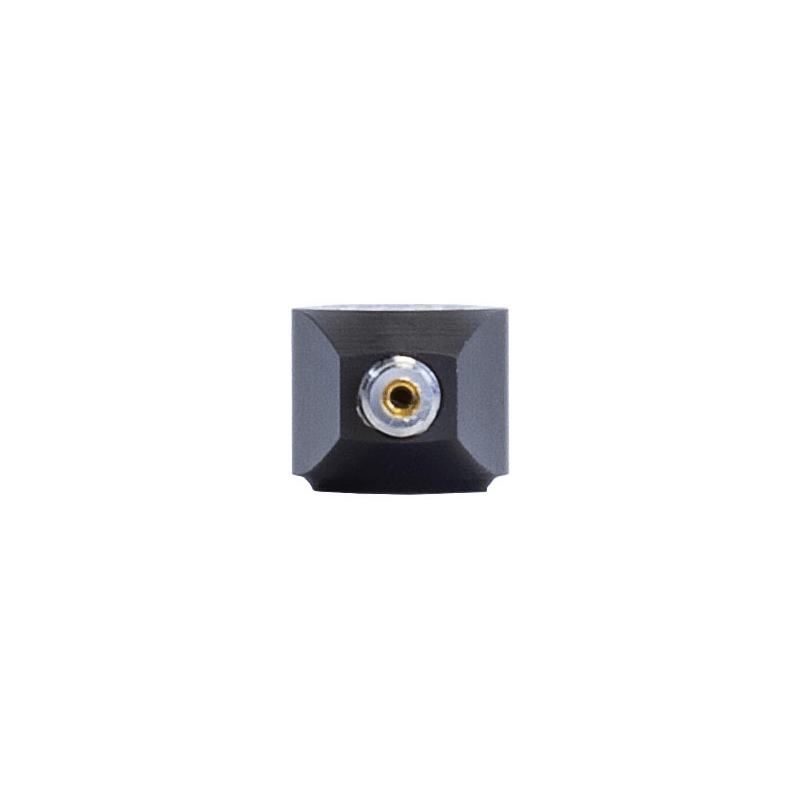

KS91C - Image 3

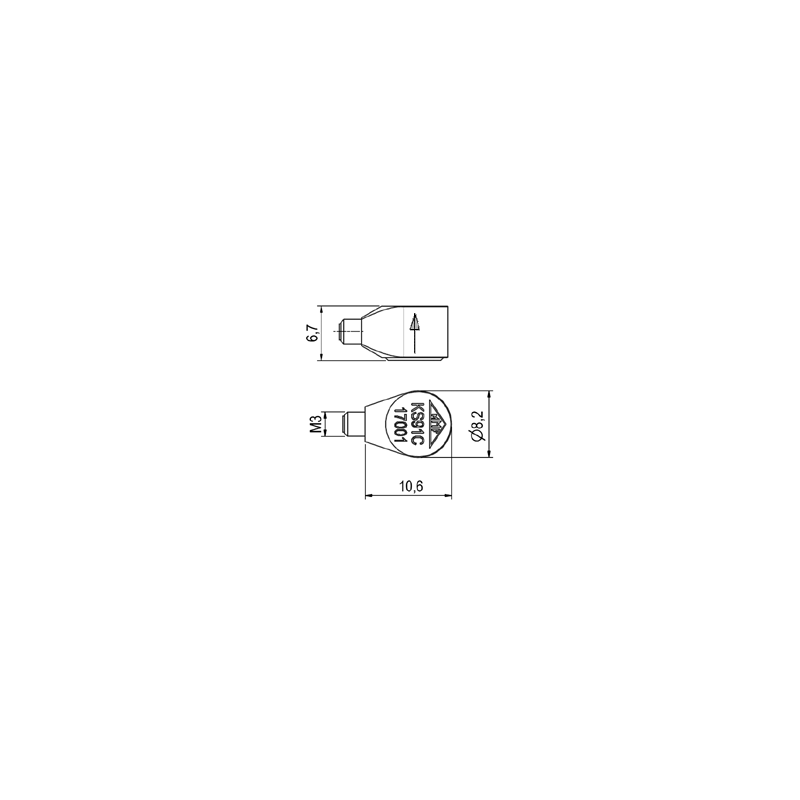

KS91C - Image 4

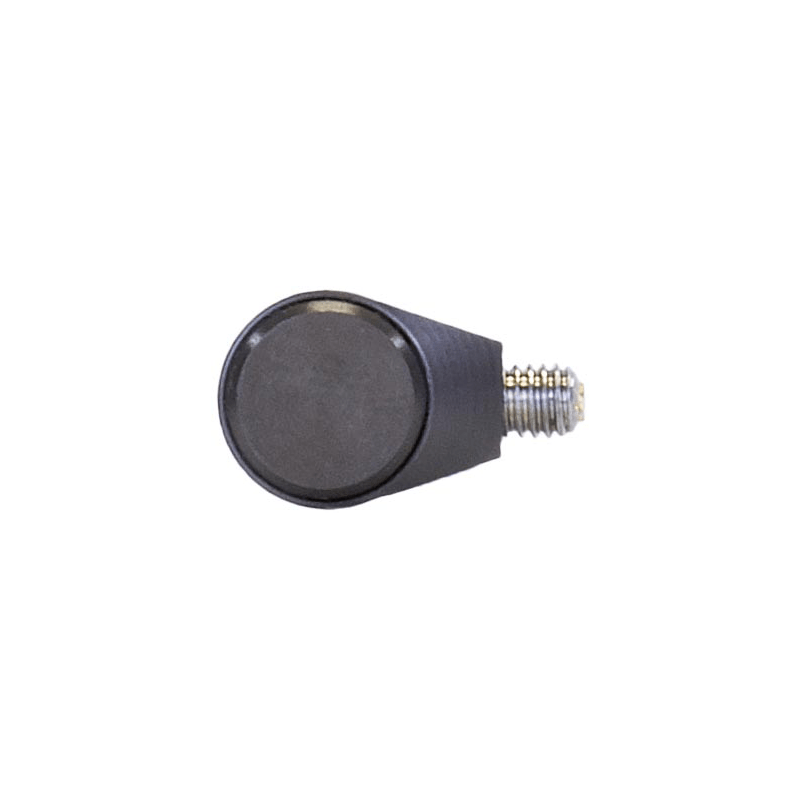

KS91C - Image 5

KS91C

Miniature Accelerometer

This piezoelectric accelerometer is suitable for lightweight measurement objects and for applications where small sensor dimensions are important.

Another advantage is the high upper cut-off frequency.

Due to the extremely low-noise piezoelectric measuring principle, equally high accelerations and, in conjunction with an appropriate amplifier, very low accelerations can be recorded.

Output

IEPE
Axes

uniaxial
Mass

1.3 g
Sensitivity

10 mV/g
Measuring range

6000 m/s²
Lower frequency limit (3 dB)

0.3 Hz
Upper frequency limit (3 dB)

37 kHz
Broadband Resolution (rms)

3 mg
Connection

Subminiatur M3, radial
Mounting

Adhesive
Working temperature range

-40 .. 120 °C
Protection

isolated, IP60

KS91C : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty
  • Case

KS91C /01: with accessories kit

  • Sensor with calibration data sheet
  • 009-SUB-BNC-1,5: Low-noise cable; 1,5 m; 120 °C; Ø2,1
  • 002: Adhesive wax
  • 038: Instant glue
  • 039: Removal tool for KS91C
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!
