KS903B10

Name: KS903B10
SKU: 23570
Availability: InStock

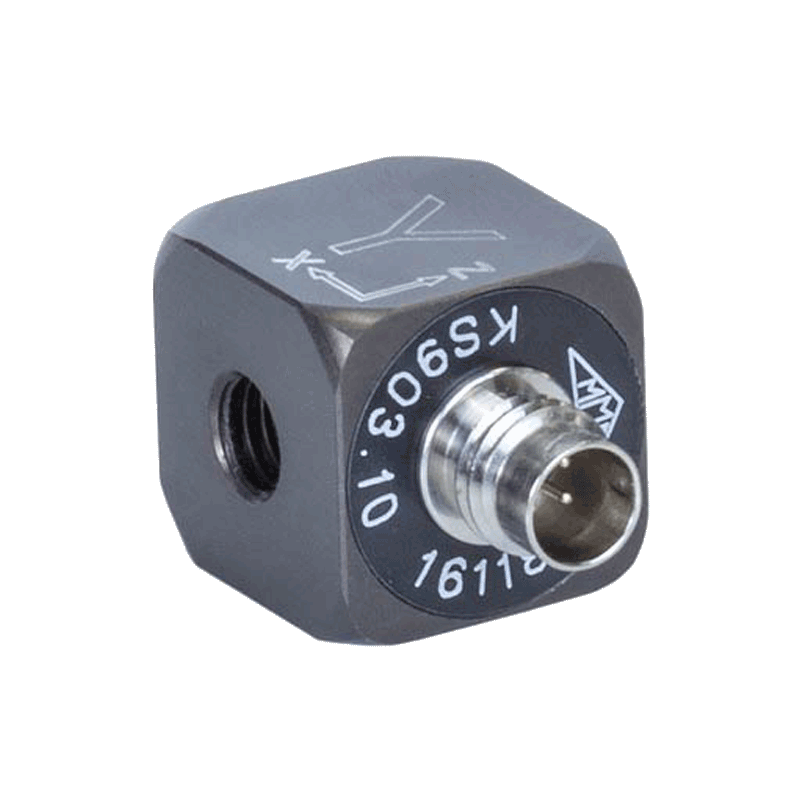

Triaxial Accelerometer

Delivery version

Triaxial accelerometer in compact design for general applications and modal analysis.

Contains an electronic data sheet (TEDS).

Output	IEPE
Mass	6,2 g
Sensitivity	10 mV/g
Measuring range	6000 m/s²
Lower frequency limit (3 dB)	0.15 Hz
Upper frequency limit (3 dB)	11 kHz (x), 22 kHz (y/z)
Connection	1/4-28 UNF, 4 pins
Mounting	M5 female thread /X/Y)
Working temperature range	-30 .. 100 °C
Delivery version	Without accessories, with accessory kit (version /01)

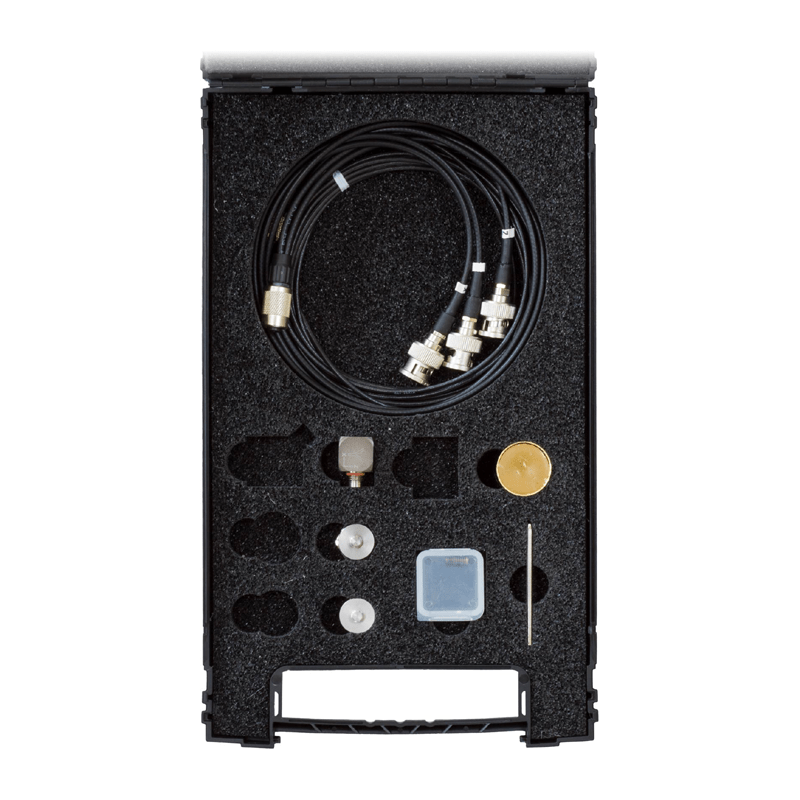

Here is an example of the scope of delivery:

Accessories for this product

Stud bolt M5 x 8

Adhesive pad, insulating, M5 (male)

IEPE cable adapter Binder 711, 4 pins, fem. to 3 x BNC, male

Instant glue

Stud adapter M5 (male) / UNF 10-32 (male)

Stud adapter M5 (male) / 1/4"-28 (male)

IEPE cable for triaxial accelerometers with 1/4"-28 UNF and Binder 711 connectors

Adapter for measurements with accelerometers on curved surfaces

	KS903B10	KS903B100
Output	IEPE	IEPE
Mass	6,2 g	9 g
Sensitivity	10 mV/g	100 mV/g
Measuring range	6000 m/s²	600 m/s²
Lower frequency limit (3 dB)	0.15 Hz	0.15 Hz
Upper frequency limit (3 dB)	11 kHz (x), 22 kHz (y/z)	12 kHz (y/z), 7 kHz (x)
Connection	1/4-28 UNF, 4 pins	1/4-28 UNF, 4 pins
Montage	M5 female thread /X/Y)	M5 female thread /X/Y)
Working temperature range	-30 .. 100 °C	-30 .. 100 °C
Liefervariante	Without accessories, with accessory kit (version /01)	-
