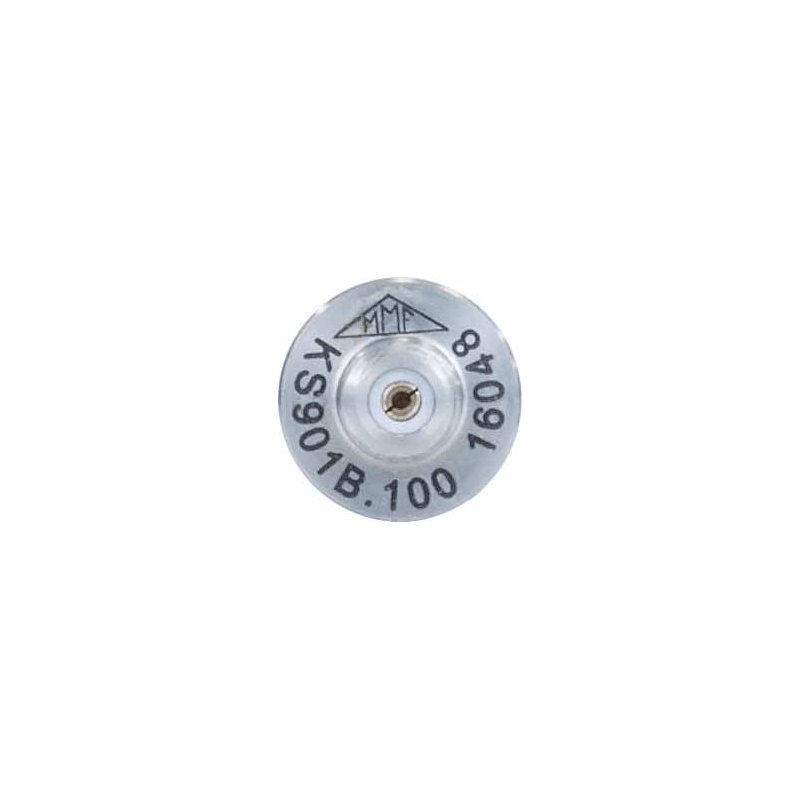

KS901B100

OEM Accelerometer

Output	IEPE
Axes	uniaxial
Mass	5,6 g
Sensitivity	100 mV/g
Measuring range	600 m/s²
Lower frequency limit (3 dB)	0.2 Hz
Upper frequency limit (3 dB)	23 kHz
Broadband Resolution (rms)	0.4 mg

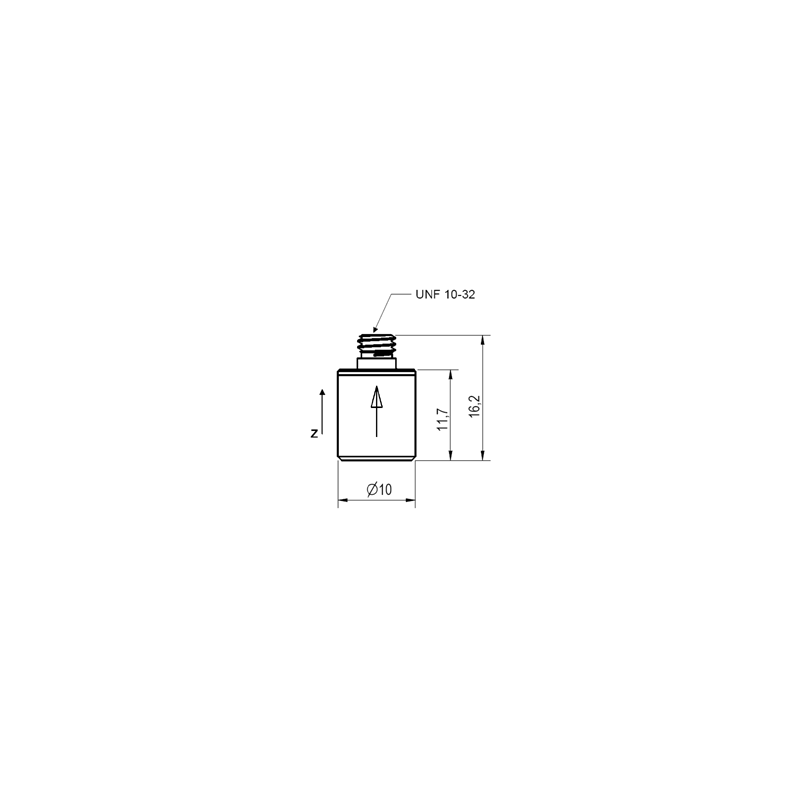

Connection	UNF 10-32, axial
Mounting	Gluing in drill hole Ø10 (depth > 6 mm)
Working temperature range	-30 .. 120 °C
Protection	IP60

Accessories for this product

Adhesive wax

Low-noise cable UNF 10-32 / BNC; 1,5 m

Low-noise cable UNF 10-32 / UNF 10-32; 1,5 m

Low-noise cable UNF 10-32 / BNC; 10 m

Low-noise cable UNF 10-32 / BNC; 5 m

Coupler 2 x UNF 10-32

Adapter UNF 10-32 (female) to BNC (male)

Adapter UNF 10-32 to TNC

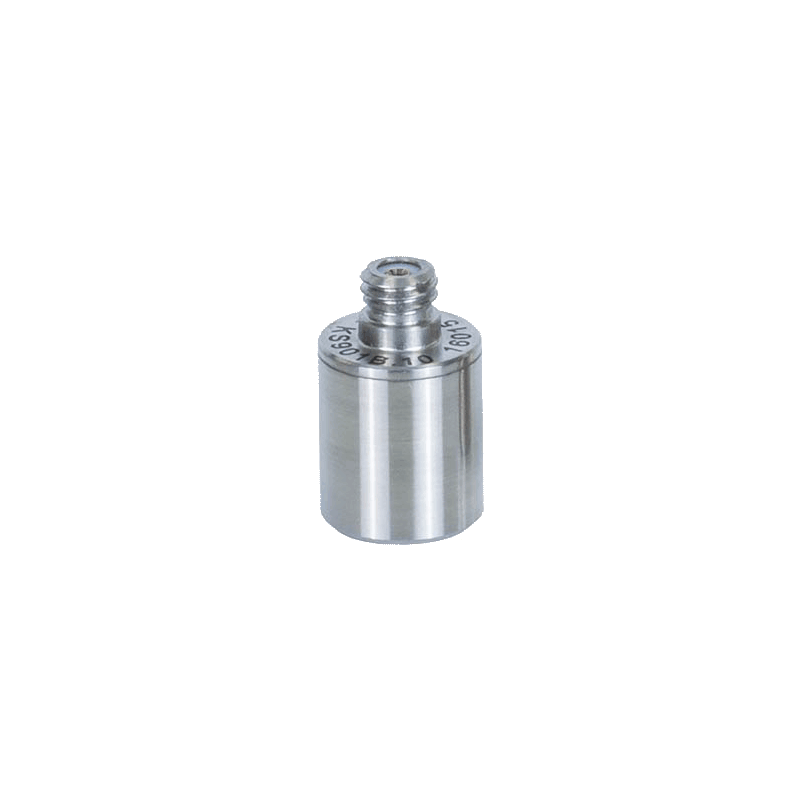

	KS901B100	KS901B10	KS90B
Output	IEPE	IEPE	Charge
Axes	uniaxial	uniaxial	uniaxial
Mass	5,6 g	5,2 g	5.1 g
Sensitivity	100 mV/g	10 mV/g	10 pC/g
Measuring range	600 m/s²	5000 m/s²	50000 m/s²
Lower frequency limit (3 dB)	0.2 Hz	0.35 Hz	-
Upper frequency limit (3 dB)	23 kHz	28 kHz	27 kHz
Broadband Resolution (rms)	0.4 mg	1 mg	-
Connection	UNF 10-32, axial	UNF 10-32, axial	Solder pins, TO-39 package
Mounting	Gluing in drill hole Ø10 (depth > 6 mm)	Gluing in drill hole Ø10 (depth > 6 mm)	Gluing in drill hole Ø10 (depth > 6 mm)
Working temperature range	-30 .. 120 °C	-30 .. 120 °C	-40 .. 150 °C
Protection	IP60	IP60	IP60
