KS82L

VMID Acceleraometer

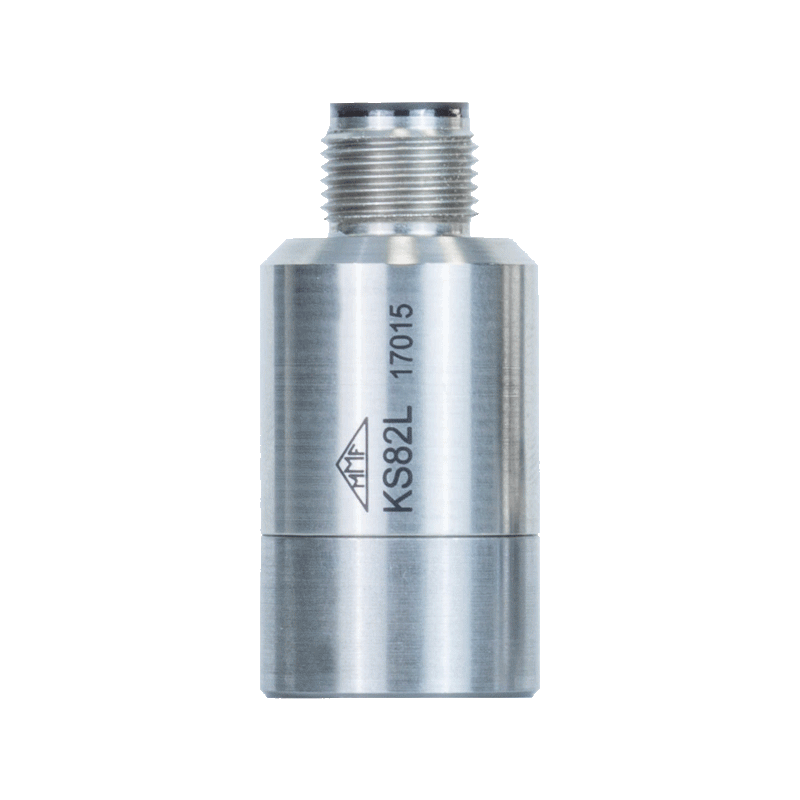

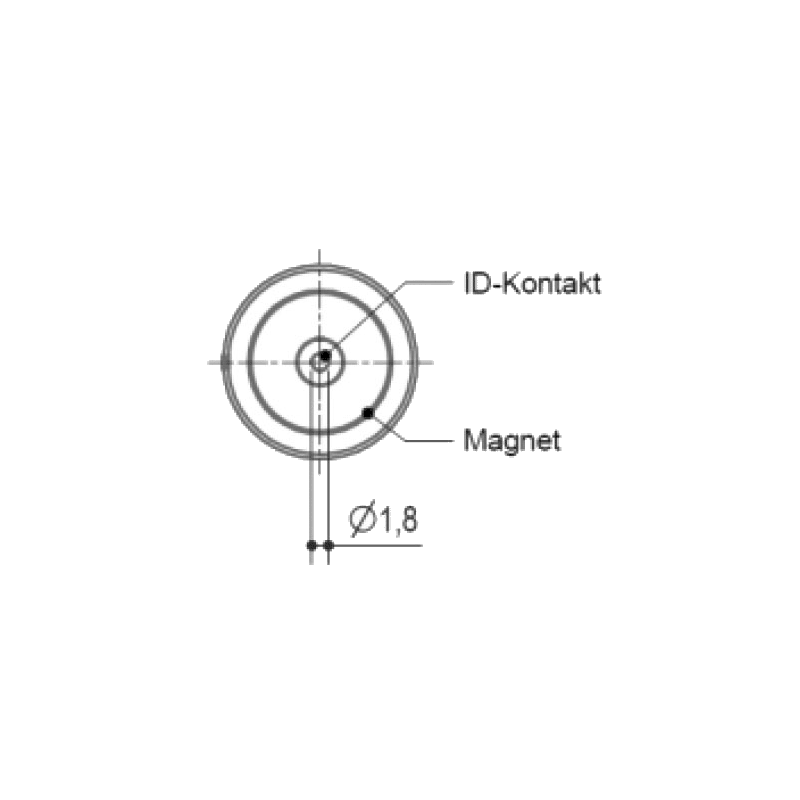

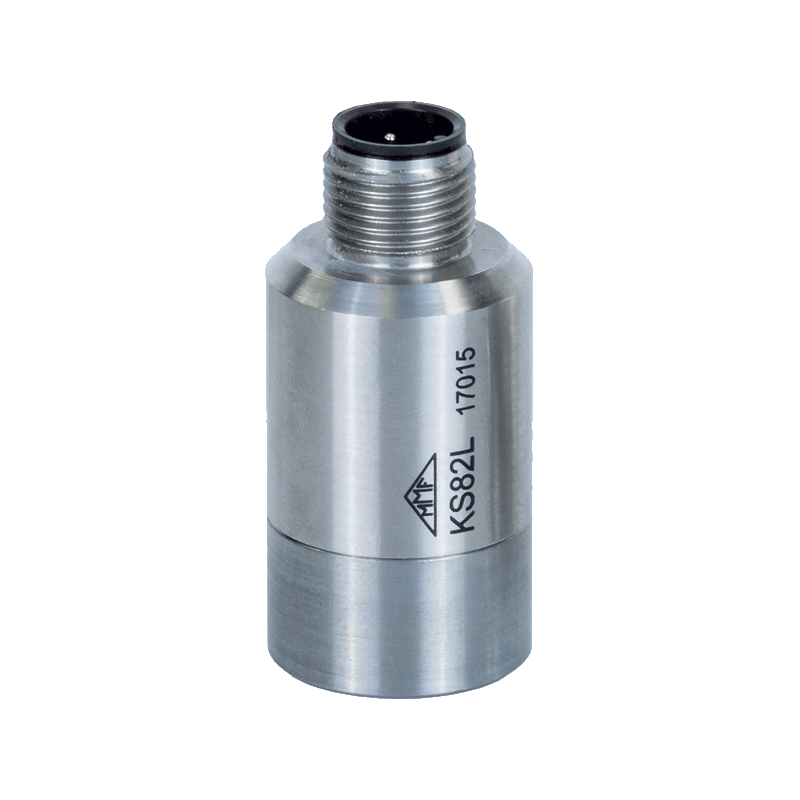

Rugged stainless steel case with integral magnetic base and reading contact for VMID measurement point data

Low-Power IEPE output for power-saving applications with battery-operated instruments, scope of delivery of vibration meters VM22, VM23, VM24 and VM25

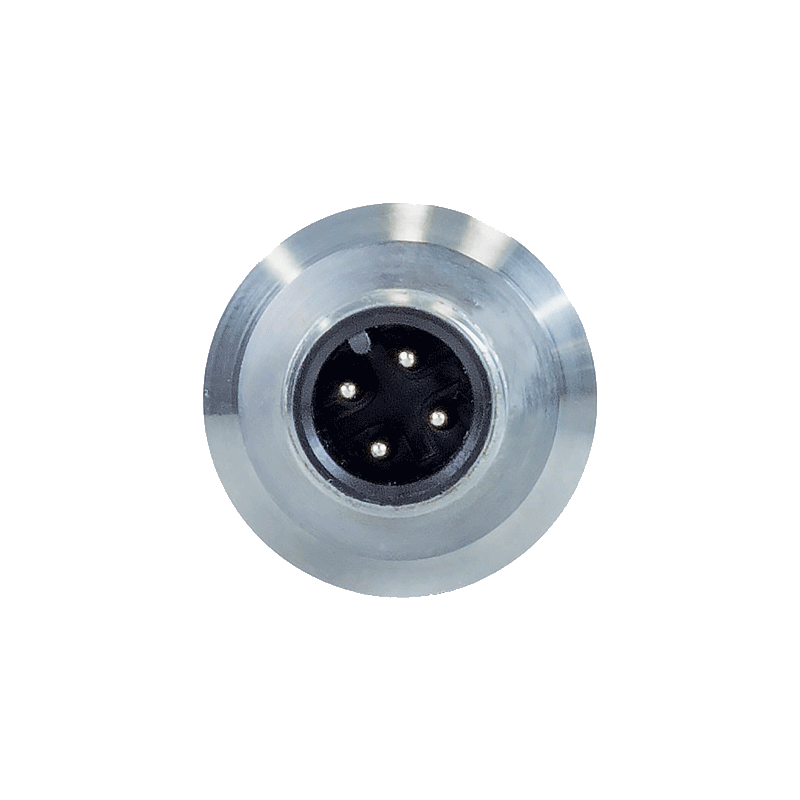

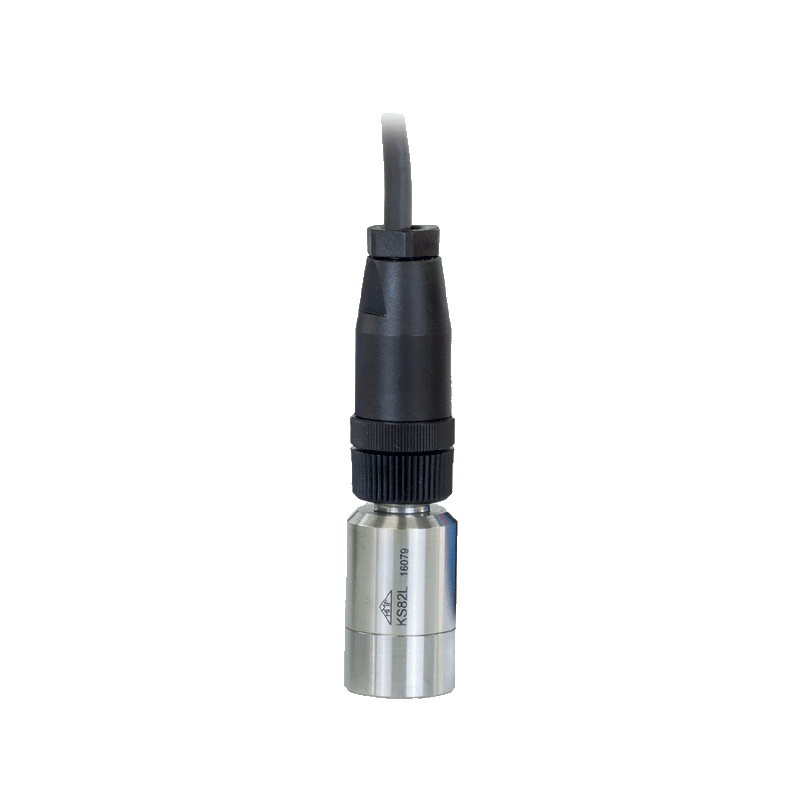

Robust M12 connector

Double shielded case for EMI protection

IP67

Output

Low Power IEPE
Measurand

Acceleration
Sensitivity

35 mV/g
Lower frequency limit (3 dB)

0,2 Hz
Upper frequency limit (3 dB)

14 kHz
Connection

Binder 713 (M12)
Working temperature range

-40 .. 100 °C
Assembly

Magnetic base
Mass

54 g

KS82L neu

  • Sensor with calibration data sheet
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!
