KS823B

Highly sensitive Triaxial Accelerometer

Highly sensitive triaxial accelerometer for minimal vibrations.

Accessories available for wall mounting and floor installation.

Output

IEPE
Mass

365 g
Sensitivity

500 mV/g
Measuring range

120 m/s²
Lower frequency limit (3 dB)

0,07 Hz
Upper frequency limit (3 dB)

6 kHz
Connection

Binder 718, radial
Assembly

M8 internal thread
Working temperature range

-30 .. 90 °C

KS823B : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty
  • Case

KS823B /01: with accessories kit

  • Sensor with calibration data sheet
  • 088-B718G-B711-5: IEPE triaxial cable; 5 m; Binder 718 / 711; 80 °C; Ø5
  • 034-B711f-BNC: IEPE cable adapter; 0.5 m; Binder 711 / 3x BNC; 80 °C
  • 508: Rare earth magnetic holder; M8 female; Ø54; 80 °C
  • 629: Mounting disk with swivel for KS823B incl. 10 hammer-set anchors for concrete/stone
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads

Accessories for this product

  • 034-B711f-BNC

    IEPE cable adapter Binder 711, 4 pins, fem. to 3 x BNC, male

  • 088-B718G-B711-5

    IEPE cable for triaxial accelerometers with Binder 718 and Binder 711 connectors

  • 508

    Rare-earth magnetic base for flat and curved surfaces, M8 (fem.)

  • 529

    Wall and ceiling adapter for KS823B, without screw ring

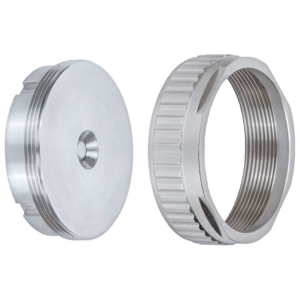

  • 629

    Wall and ceiling adapter for KS823B, with screw ring

  • 729

    Tripod floor plate for accelerometers

  • M208A

    8-channel IEPE conditioner

  • M33

    IEPE amplifier module

  • M72A3

    Charge Amplifier / IEPE Amplifier
