KS78C100

Universal Accelerometer with TEDS

  • The accelerometers on this page are suitable for standard applications in laboratories and industry.
  • The base is electrically insulated to prevent ground loops.
  • Contains an electronic data sheet (TEDS).
Output

IEPE
Mass

11.3 g
Sensitivity

100 mV/g
Measuring range

600 m/s²
Lower frequency limit (3 dB)

0.2 Hz
Upper frequency limit (3 dB)

20 kHz
Connection

UNF 10-32, axial
Mounting

M5 thread (female)
Working temperature range

-40 .. 120 °C

KS78C100 : without accessories

  • Sensor with calibration data sheet
  • 2 years warranty
  • Case

KS78C100 /01: with accessories kit

  • Sensor with calibration data sheet
  • 009-UNF-BNC-1,5: Low-noise cablel; 1,5 m; 120 °C; Ø2,1
  • 003: Stud bolt; M5 x 8
  • 002: Adhesive wax
  • 001: Sensor probe tip; M5

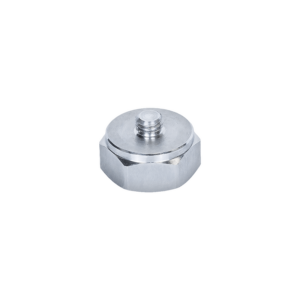

  • 708: Rare earth magnetic base; M5; SW15; 120 °C
  • 2 years warranty
  • Case

PLEASE NOTE:

Calibration data sheets are not accredited reports and are therefore not covered by EA MLA (EA Multilateral Agreement)!

Downloads

Accessories for this product

  • 001

    Hand-held probe M5 (male)

  • 002

    Adhesive wax

  • 003

    Stud bolt M5 x 8

  • 009-UNF-BNC-1,5

    Low-noise cable UNF 10-32/BNC; 1.5 m

  • 009-UNF-UNF-1,5

    Low-noise cable UNF 10-32/ UNF 10-32; 1.5 m

  • 010-UNF-BNC-10

    Low-noise cable UNF 10-32/BNC; 10 m

  • 010-UNF-BNC-5

    Low-noise cable UNF 10-32/BNC; 5 m

  • 016

    Coupler 2 x UNF 10-32
