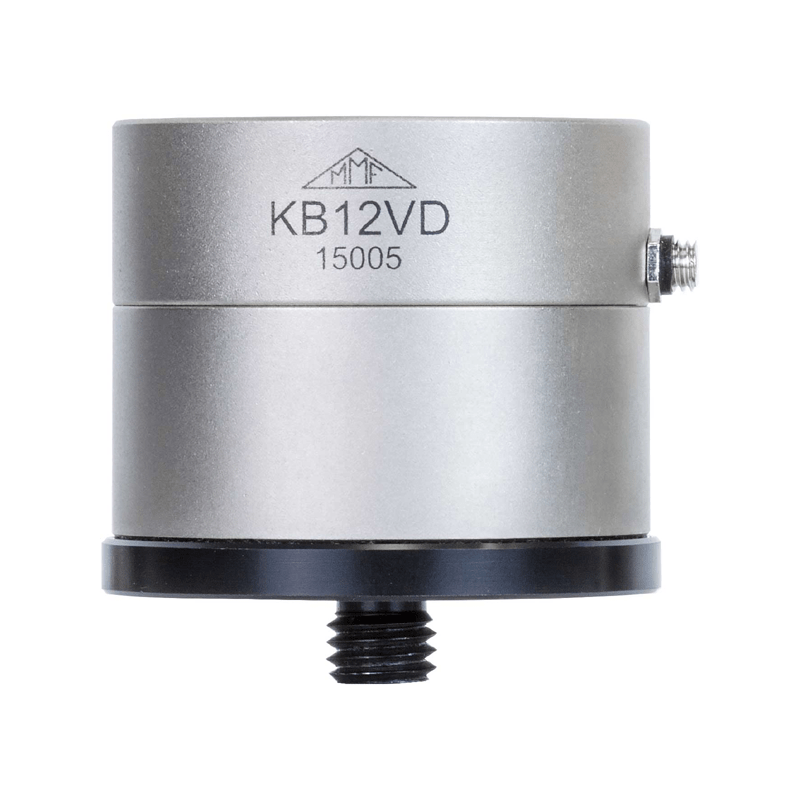

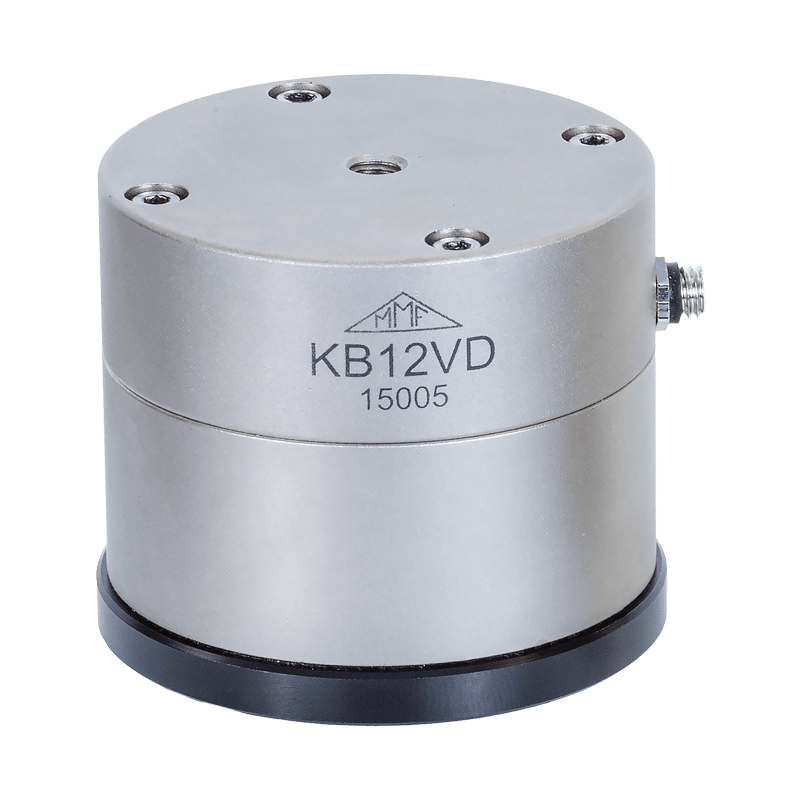

Highly sensitive acceleration sensor

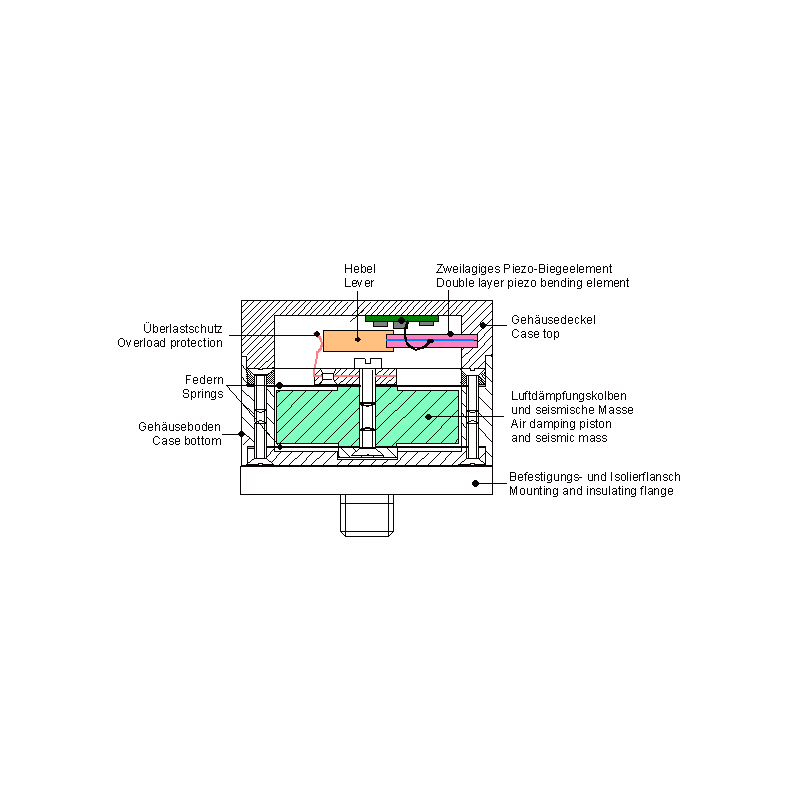

Due to their high sensitivity, these piezoelectric acceleration sensors are particularly suitable for seismic investigations and the measurement of structural vibrations. Typical applications include vibration monitoring on houses, towers, masts, dams, bridges, wind turbines, oil platforms and pipelines. Other applications include the measurement of very low vibrations on highly sensitive systems. In contrast to sensors from many other manufacturers, the high sensitivity is not achieved by internal amplification, but by a very sensitive sensor element. This results in extremely low noise and very good resolution.
IEPE
10 000 mV/g
6 m/s²
0,08 Hz
0,26 kHz
UNF 10-32, radial

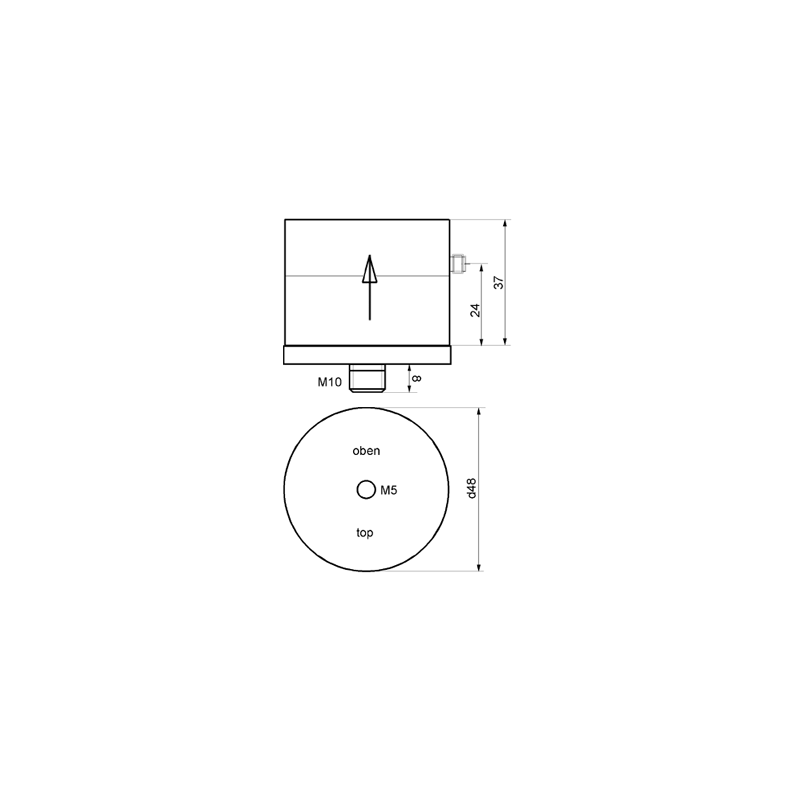

M5 internal thread, M10 threaded socket
-20 .. 80 °C
KB12VD: without accessories
KB12VD/01: with accessory kit
Stud bolt M5 x 8
Rare-earth magnetic base, M5 (male)
Low-noise cable UNF 10-32 / BNC; 1,5 m
Low noise cable UNF 10-32 / UNF 10-32; 1,5 m
Low-noise cable UNF 10-32 / BNC; 10 m
Low-noise cable UNF 10-32 / BNC; 5 m
Adapter UNF 10-32 (fem.) to BNC (male)
Stud adapter M5 (male) / UNF 10-32 (male)
Stud adapter M5 (male) / 1/4"-28 (male)

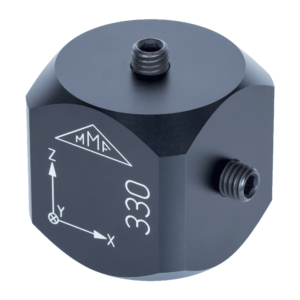

Triaxial mounting cube 3 x M10
Tripod floor plate for accelerometers
8-channel IEPE conditioner
IEPE amplifier module
Charge amplifier/IEPE amplifier
