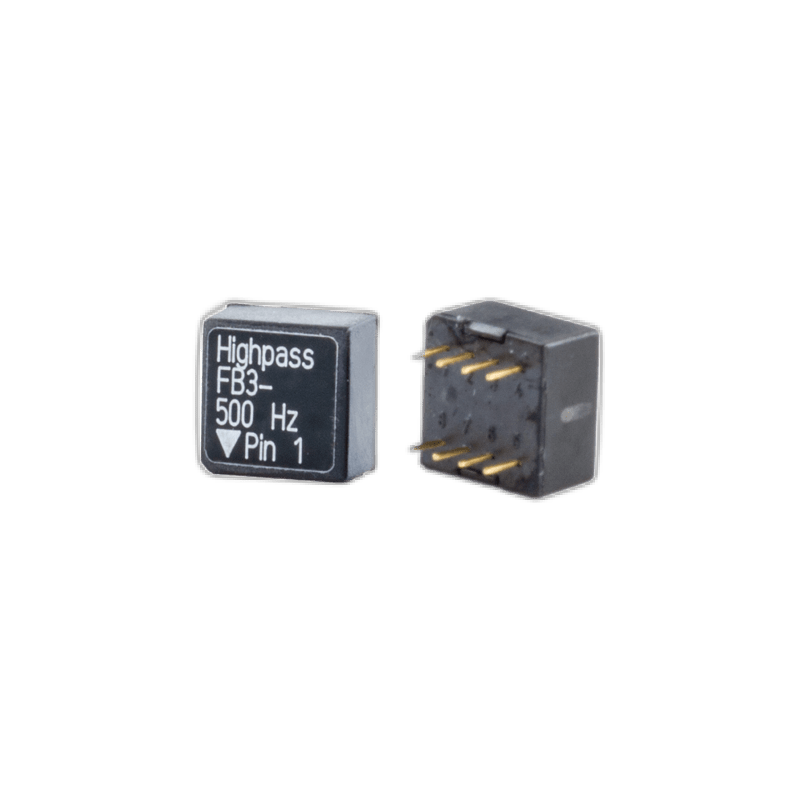

FB3
FB3 - Image 2

FB3

Plug-in high pass filters

  • High-pass filter modules with different cut-off frequencies
  • Suitable for the Measuring Amplifiers M33, M208A and M208B
  • Attenuation of unwanted frequecy components and noise
  • Improvement of signal-to-noise ratio
  • Reduces the settling time after transient signals
Lower frequency limit (3 dB)

3 Hz, 5 Hz, 10 Hz, 30 Hz, 50 Hz, 100 Hz, 300 Hz, 500 Hz, 1000 Hz
Filter characteristics

2nd order, Butterworth
Attenuation

>35 dB/decade
  • Filter module of the selected cut-off frequency
  • 2 years warranty

Note:

This product can only be used with the Measuring Amplifiers M33, M208A and M208B.

Downloads

Accessories for this product

  • FB2

    Plug-in low pass filters

  • FBV

    Single integrator plug-in modules

  • FBD

    Double integrator plug-in modules
