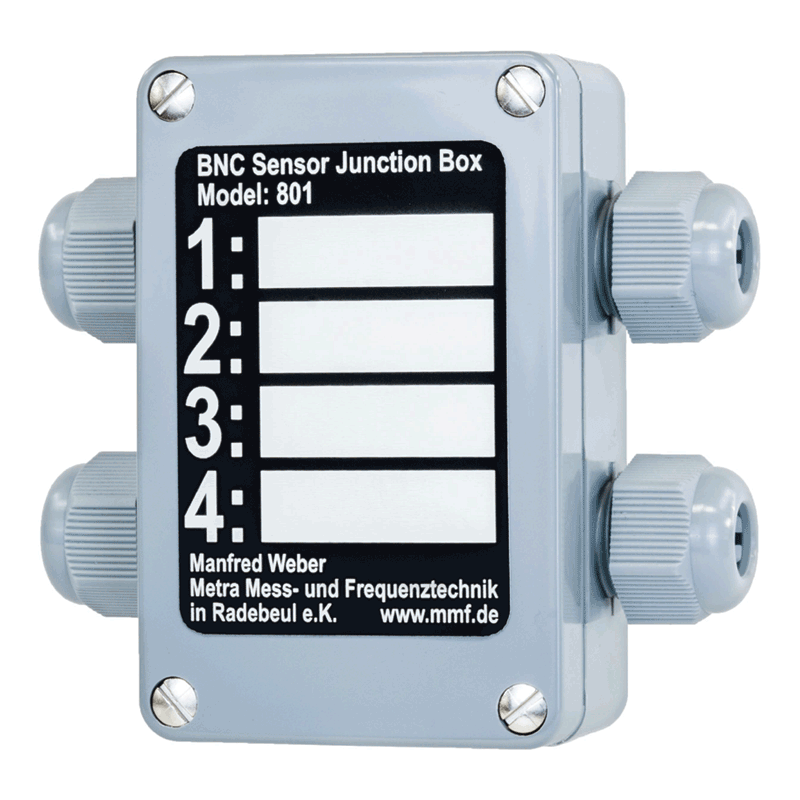

Quadruple terminal box for IEPE transducers
Quadruple terminal box for IEPE transducers and other signal sources

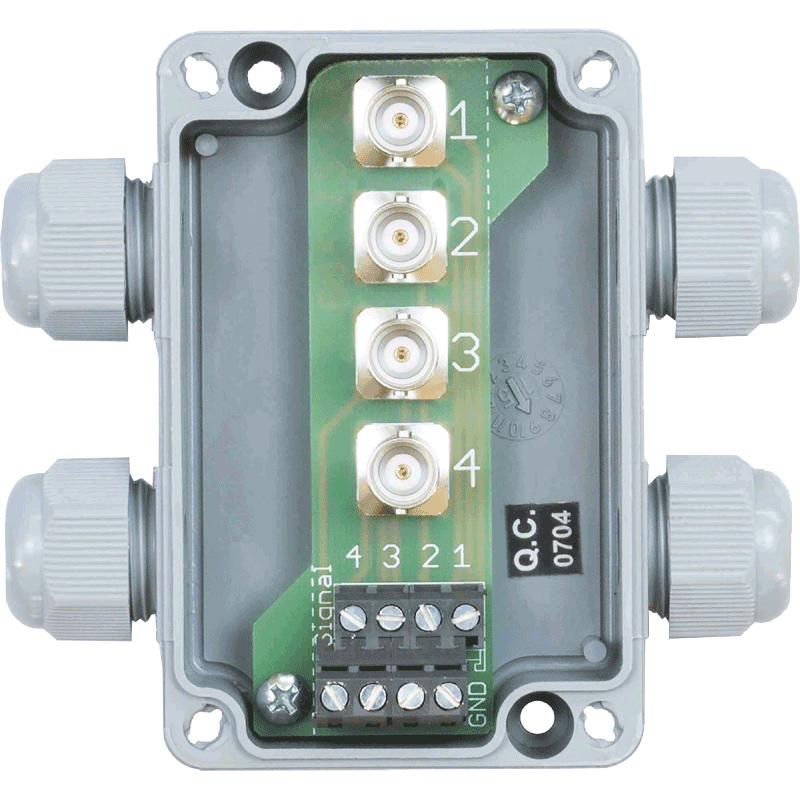

Wire connection via screw terminal block
IP65 polyamide case with good mechanical and thermal stability
Cover with quick-lock mechanism
Dimensions: Lengt h= 100 mm, Width = 46 mm, Depth = 35 mm (without cable glands)
Cable diameter: 4 to 10 mm
Here is an example of the scope of delivery:
